ABB 2CPX010406R9999

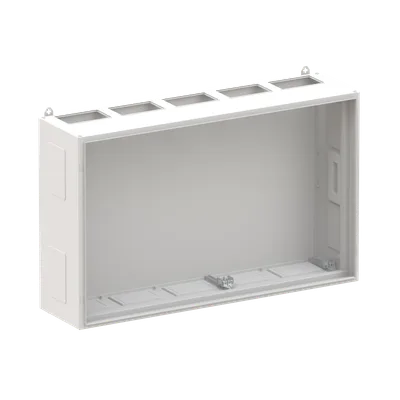

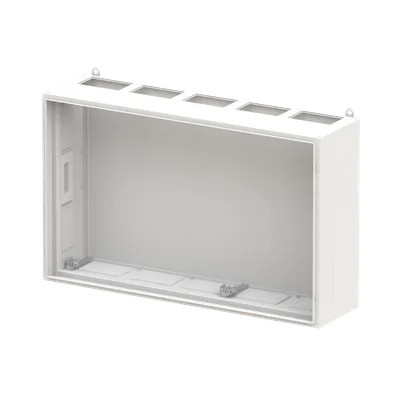

Wall-mounting cabinet, series TwinLine, empty cabinet, Expansion option: Lateral and bottom, for the internal use, without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Impact strength IK08, Powder-coated, in RAL 7035, enclosure out of sheet steel, without door, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, on side via flange opening pre-punched, dimensions in mm (H x W x D): 800 x 1300 x 350, Grid unit 5 GU, Overall height 1, panel width 5, Space units 300, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Modul or mounting plate on EDF-/WR-mounting frame

ABBMFR # 2CPX010406R9999SKU # YLSRX0BINJW7

Extended Product TypeTW505SB

Number of Flange Openings5

Number of Conduit Inlets260

Number of Rows5

Enclosure TypeWall-mounting cabinet

Enclosure Type of Height1
