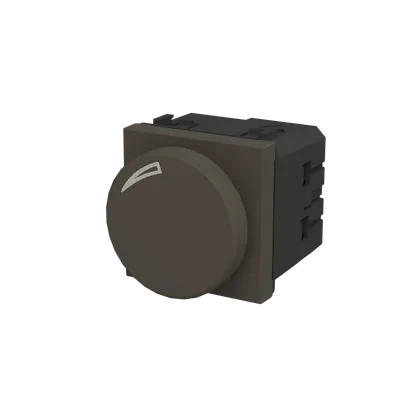

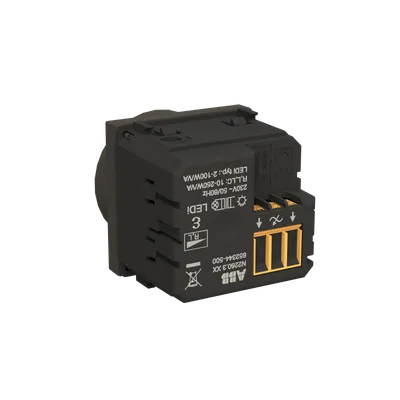

ABB 2CLA226030N1801

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CLA226030N1801

Color: Anthracite. Rated voltage: 230 Vac ± 10% Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA) Power (min./max load): - LEDi: 2 / 100 W/VA (max. 10 lamps) - Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps) - LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps) - Incandescent lamps: 10 / 250 W/VA - Halogen lamps: 10 / 250 W/VA - LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps) 2 wire connection Optional: auxiliary on/off with 2-way switch N2X02 Indicator LED lamp included Back-up fuse: Electronic Overload protection: Electronic Ambient temperature: 0°C to +35°C Size: 2 modules.

ABBMFR # 2CLA226030N1801SKU # YLSE5IZJZK4KOVF

Extended Product TypeN2260.3 AN

Mounting TypeFlush Mounted

Type of FasteningSnapper Mounting

Degree of ProtectionIP20

Actuator TypeTurn button

Connection TypeScrew

Share

Have questions?Chat on WhatsApp

About This Product

Color: Anthracite. Rated voltage: 230 Vac ± 10% Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA) Power (min./max load): - LEDi: 2 / 100 W/VA (max. 10 lamps) - Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps) - LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps) - Incandescent lamps: 10 / 250 W/VA - Halogen lamps: 10 / 250 W/VA - LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps) 2 wire connection Optional: auxiliary on/off with 2-way switch N2X02 Indicator LED lamp included Back-up fuse: Electronic Overload protection: Electronic Ambient temperature: 0°C to +35°C Size: 2 modules.

ABB 2CLA226030N1801

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeN2260.3 AN

Mounting TypeFlush Mounted

Type of FasteningSnapper Mounting

Ambient Air TemperatureOperation -5 ... +35 °C, Storage -5 ... +50 °C

Degree of ProtectionIP20

Actuator TypeTurn button

Connection TypeScrew

Accessories AvailableYes

Rated Voltage (Ur)230...230 V

Frequency (f)50...60 Hz

Load TypeUniversal and LED Retrofit

Power Watt10...250 V·A

Control Supply Voltage1 ... 10 V

Design RangeZenit

Surface FinishingDecor, Matt

MaterialPlastic, Thermoplastic

ColorAnthracite

Number of Modules2

Built-In Depth (t2)54 mm

Documents & CAD

Documents 16

CertificateCE DoC for Zenit Screwless Terminal SwitchesPDF·214 KB·English

Instruction ManualInstruction manual F@H smart switch 2CLA222500N1001 EN_ES_IT_NE_FRPDF·323 KB·English

Instruction ManualInstruction manual Bluetooth Low Energy Smart Switch 2CLA222510N1001 EN_ESPDF·259 KB·English

Instruction ManualManual - Timer switch - N2262.1 / 8162.1 / 2262.1PDF·639 KB·English

Instruction ManualInstruction manual - Card switch 8114.5 / N2214.5 / AM40544PDF·421 KB·English

Instruction ManualInstructions electronic blind switchPDF·560 KB·English

Instruction ManualInstallation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944PDF·493 KB·English

Instruction ManualInstallation and operating instructions - Rotatory LED dimmer N2260.3, N2260.8, 8660.2, AMD60344PDF·325 KB·English

Instruction ManualInstallation manual - 110-230V LED/Universal Rotary Dimmer andPDF·474 KB·English

CertificateDoc 42-03-03 DimmerPDF·351 KB·English

Instruction ManualManual - Unno rangePDF·4.1 MB·English

Instruction ManualManual - Fan regulator - N2254.1 / 2254.1 / 8854.1PDF·182 KB·English

Instruction ManualUser manual - RTC with floor temperature sensor - 8140.9 / N2240.3PDF·238 KB·English

CertificateZenit Electronic Switches CE DeclarationPDF·655 KB·English

Instruction ManualInstruction manual - Motion sensor - N2241 & AMD41144PDF·6.0 MB·English

CertificateNiessen movement detectors CE DeclarationPDF·1.1 MB·English

CAD Files 2

2D Drawing
