ABB 2CKA001582A0425

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CKA001582A0425

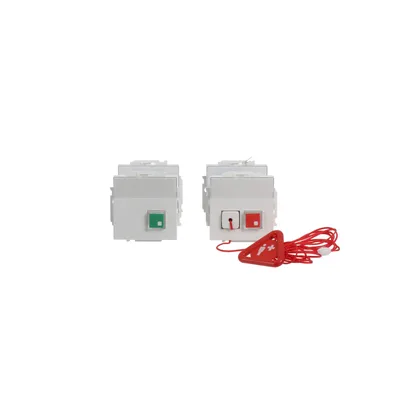

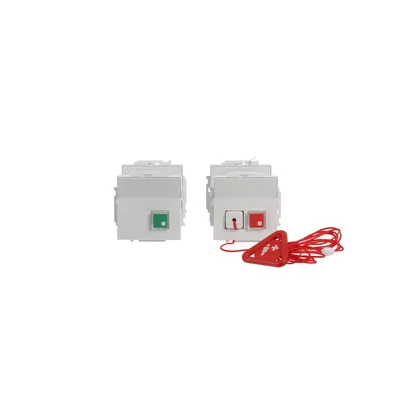

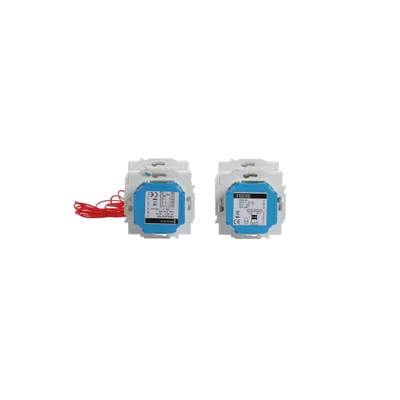

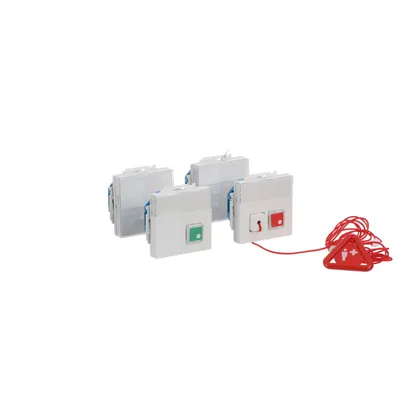

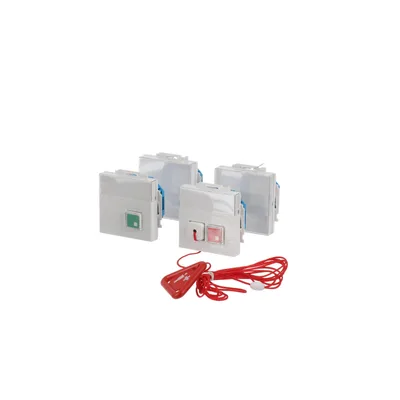

For setting up an emergency call system for handicapped toilets. Consisting of: power supply insert, alarm signalling insert, signal push-button insert with pullcord and cancel-button insert. Activation of alarm signal via cord button. With pull cord RED, 10 m length. Optical and acoustic emergency-call signalling outside the handicapped toilet. Comforting light when alarm signal is activated. With cancel button for cancelling the emergency call. Size of labelling field sensor: 61 x 20 mm. Size of labelling field transformer/alarm control unit: 61 x 61 mm. For installations according to DIN VDE 0834 a uninterruptible power supply is required.

ABBMFR # 2CKA001582A0425SKU # YLSNBA8QAA3AEM

Extended Product Type1510 UC-84-503-101

Mounting TypeFlush Mounted

Ambient Air TemperatureOperation 5 ... +40 °C

Degree of ProtectionIP20

Number of Outputs1

Number of Inputs1

Share

Have questions?Chat on WhatsApp

About This Product

For setting up an emergency call system for handicapped toilets. Consisting of: power supply insert, alarm signalling insert, signal push-button insert with pullcord and cancel-button insert. Activation of alarm signal via cord button. With pull cord RED, 10 m length. Optical and acoustic emergency-call signalling outside the handicapped toilet. Comforting light when alarm signal is activated. With cancel button for cancelling the emergency call. Size of labelling field sensor: 61 x 20 mm. Size of labelling field transformer/alarm control unit: 61 x 61 mm. For installations according to DIN VDE 0834 a uninterruptible power supply is required.

ABB 2CKA001582A0425

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product Type1510 UC-84-503-101

Mounting TypeFlush Mounted

Modular Components IncludedCover with Flush Mounted Insert and Mounting Plate

Ambient Air TemperatureOperation 5 ... +40 °C

Degree of ProtectionIP20

Number of Outputs1

Number of Inputs1

Product RangeInfoline

Rated Voltage (Ur)230 V

Secondary Voltage15 V

Auxiliary Voltage AC/DC230 V AC/DC

Input Voltage TypeAC

Rated Frequency (f)50 / 60 Hz

Power Loss2 W

Number of Contacts NO1

Design RangePlatform 63, future linear, Busch-axcent, solo, carat

Design Range Variantfuture, future linear, Busch-axcent, Busch-axcent pur

Surface FinishingUntreated, Glossy

MaterialThermoplastic

Label Space ProvidedWith Label Space

Label Space SizeAlarm Control Unit 61 x 61 mm, Rocker 61 x 20 mm

RAL NumberSimilar to RAL 9016

Colorstudio white

Built-In Depth (t2)21 mm

Documents & CAD

Documents 30

Instruction ManualInstallation and Operating Instructions_ (.PDF) [XX] 6716PDF·804 KB·English

CertificateProduct Declaration.PDF [EN] 6480/11-84PDF·24 KB·English

CertificateProduct Declaration.PDF [EN] 1510 UC-84-503-101PDF·24 KB·English

Instruction ManualInstruction Friends of HUE smart switch (.PDF)PDF·579 KB·English

Instruction ManualManual (.PDF) [EN] 1510 UC-XXX-500PDF·446 KB·English

Instruction ManualManual (.PDF) [EN] 1510 UC-XXXPDF·442 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1510 UC-XXX-500PDF·213 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1510 UC-XXXPDF·131 KB·English

CertificateCradle to Cradle® Certificate (.PDF) [EN] future® linear, Busch-axcent®, Busch-balance® SI (Circularity Silver)PDF·143 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [XX] 1510 UJ-xxxPDF·554 KB·English

CertificateProduct Declaration.PDF [EN] 1756-885PDF·24 KB·English

CertificateProduct Declaration.PDF [EN] 1756-884PDF·24 KB·English

CertificateProduct Declaration.PDF [EN] 1756-84PDF·24 KB·English

CertificateProduct Declaration.PDF [EN] 1756-83PDF·24 KB·English

CertificateProduct Declaration.PDF [EN] 1756-82PDF·24 KB·English

CertificateProduct Declaration.PDF [EN] 1756-81PDF·24 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1521/12 UKSC-XXXPDF·1.2 MB·English

Instruction ManualManual (.PDF) [EN] 1521/12 UKC-XXXPDF·1.2 MB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1522/1 UKC-XXXPDF·1.3 MB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1521/1 UKZC-XXXPDF·1.3 MB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1514 UC-XXXPDF·2.2 MB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1513 UC-XXXPDF·1.6 MB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [EN] 1521/13 UC-XXX 1521/15 UC-XXXPDF·1.2 MB·English

CertificateProduct Declaration.PDF [EN] 1756-803PDF·24 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [XX] 1098 xx-102PDF·367 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [XX] 64765PDF·486 KB·Türkçe

Instruction ManualInstallation and Operating Instructions (.PDF) [XX] 6716_UBTPDF·651 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [XX] 64765-xxxPDF·438 KB·English

CertificateProduct Declaration.PDF [EN] 6513UJGL-84-102PDF·24 KB·English

Instruction ManualInstallation and Operating Instructions (.PDF) [XX] 6815-xxx-101-500PDF·582 KB·English
