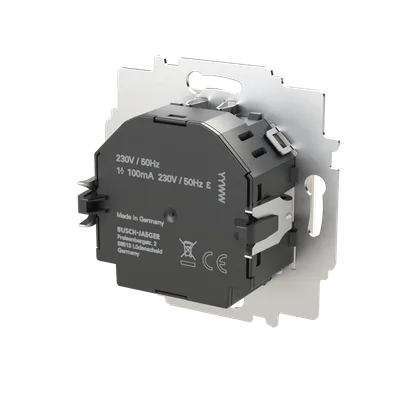

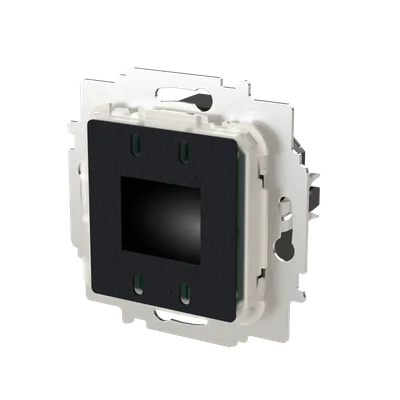

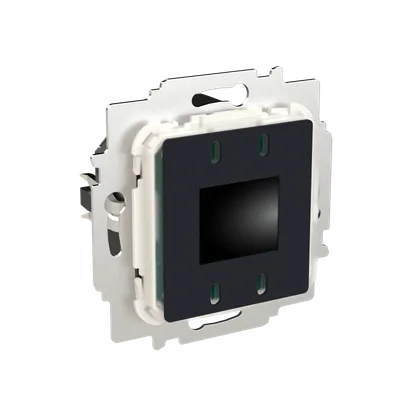

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CKA001032A0536

Silent switching thanks to electronic transistor output. With display and Bluetooth connection Manual on-site operation via 6 touch-sensor buttons. Display: Display of target temperature. The actual temperature can be queried on the display. With spreader fastening With separate connection for time-controlled night-time reduction Convenient parameterization of the technical settings via free@home Next app such as: Heating type (underfloor heating, radiator heating, etc.) Function of the extension (comfort, ECO, etc.) Controller type (PWM controller, 2-point controller, etc.) Display settings Locking on-site operation Convenient operation via app such as: Timer Operating mode Installation in flush-mounted boxes in accordance with DIN 49073 required. Particularly low installation depth: Matching central plate: 1794 MDRT-xxx Control valves in the “normally closed” version are recommended, e.g. article no. 6164/10-102. Control valve type can be selected in the app. Switching temperature difference ± 0.5 K.

ABBMFR # 2CKA001032A0536SKU # YLSAKZHL6D7BCSM

Extended Product Type1094 USITA-BT-500

Mounting TypeFlush Mounted

Ambient Air TemperatureOperation -5 ... +40 °C

Degree of ProtectionIP20

Measuring Range5 ... 30 °C

Number of OutputsHeater 1

Have questions?Chat on WhatsApp

About This Product

ABB 2CKA001032A0536

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product Type1094 USITA-BT-500

Mounting TypeFlush Mounted

Modular Components IncludedFlush Mounted Insert with Control Element

Ambient Air TemperatureOperation -5 ... +40 °C

Degree of ProtectionIP20

FunctionWith Display, Temperature display ACTUAL value, Temperature display SET value, Time-controlled

Measuring Range5 ... 30 °C

Number of OutputsHeater 1

Number of InputsExtension 1

Operating ModeTouch Sensor Button

Transmission StandardBluetooth

Contact TypeElectronic

Sensor TypeTemperature

Options ProvidedSetpoint display, Timer and Remote control, Weekly program, Daily program, Nightly reduction, Astro program

Manual OperationYes

OutputMOSFET

Terminal TypeScrew Terminals

Rated Voltage (Ur)230 V AC

Design RangePlatform 63, Busch-Duro 2000 SI, Reflex SI, Busch-art linear, future linear, Busch-axcent, solo, Pure Stainless Steel, carat, Busch-Dynasty, Basic55, Saga

Design Range VariantBusch-Duro 2000 SI, Busch-Duro 2000 SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear, Busch-art linear - with Decor Ring, Busch-art linear - pur, future, future linear, Busch-axcent, Busch-axcent pur

Built-In Depth (t2)29.9 mm
