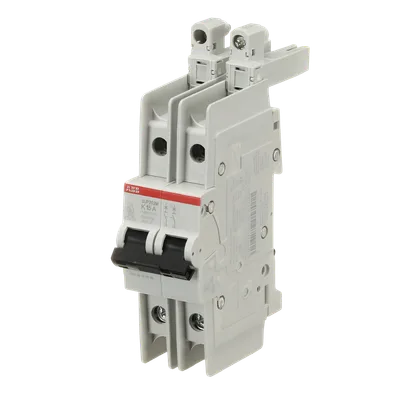

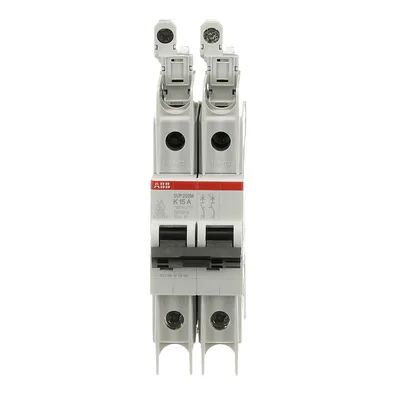

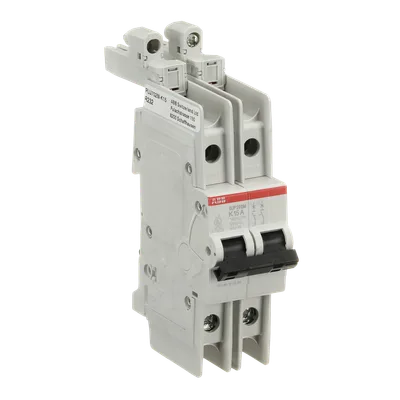

ABB 2CDT322001R0304
Miniature circuit breaker providing protection against overloads and short circuit currents, suitable for plug-in installation in ProLine Panelboard
Extended Product TypePLU702M-C30
Dielectric Test Voltage2 kV
Primary Rated Impulse Withstand Voltage4 kV
Energy Limiting Class3
Electrical Endurance6000 cycle
Mechanical Endurance20000 cycle
About This Product
Miniature circuit breaker providing protection against overloads and short circuit currents, suitable for plug-in installation in ProLine Panelboard
ABB 2CDT322001R0304
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypePLU702M-C30
Dielectric Test Voltage2 kV
Primary Rated Impulse Withstand Voltage4 kV
Energy Limiting Class3
Electrical Endurance6000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles2
Number of Poles2P
Number of Modular Spacings per DIN Rail2
Tightening Torque2.8 N·m, 25 in·lb
Accessories AvailableYes
Connecting CapacityRigid 0.75 … 35 mm², Flexible 0.75 … 35 mm², 18 … 4 AWG
Wire Stripping Length10 mm, 0.39 in
Rated Operational VoltageUL489 277/480 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)30 A
Rated Frequency (f)50/60 Hz
Power LossTotal 7 W, Average per Pole 3.5 W
Overvoltage CategoryIV
Number of Modules2
Interrupting Rating acc. to UL489(480Y / 277 V AC) 14 kA
Ambient Air TemperatureOperation -25 ... 55 °C, Storage -40 ... 70 °C, Operation -13…131 °F, Storage -40…158 °F
Degree of ProtectionHousing IP20
Pollution Degree3
Width in Number of Modular Spacings2
Built-In Depth (t2)67 mm, 2.64 in
StandardsUL 489
Certification AgencyUL
Standardization BodyUL
