How can I get a price quote for ABB 2CDS781001R6502?

You can request a fast quote for ABB 2CDS781001R6502 from Yılsa Engineering. Reference part number YLSBJANLPKRSGCE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS781001R6502 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS781001R6502 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS781001R6502?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

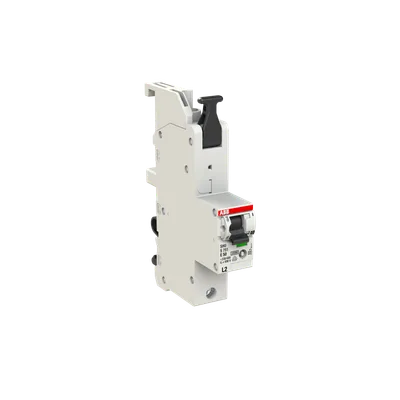

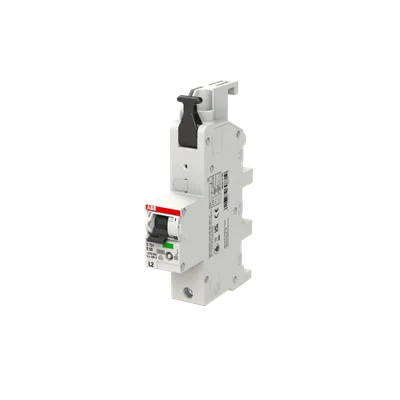

ABB 2CDS781001R6502

S751-E50 L2 sel. main CB E-Char.,25kA,50A,1P

ABBMFR # 2CDS781001R6502SKU # YLSBJANLPKRSGCE

Extended Product TypeS751-E50L2

Suitable for IsolationYes

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Number of Poles1P

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS781001R6502 (S751-E50 L2 sel. main CB E-Char.,25kA,50A,1P) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS781001R6502 — price, stock availability and technical specifications.

ABB 2CDS781001R6502

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS751-E50L2

Suitable for IsolationYes

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Number of Poles1P

Tightening Torque2.5 ... 3 N·m

Actuator TypeToggle

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2, Cross Recess Pozidriv 2, Slotted 1 x 5.5

Accessories AvailableYes

Connecting CapacityBusbar 12 x 5/10 mm², Conductor (Load) 2.5...16 mm², Conductor (Supply) 2.5...50 mm², Spring Clamp / With Insulated Ferrrule 2.5...16 mm², Spring Clamp / Without Insulated Ferrule 2.5...16 mm²

Installation Sizeacc. to DIN 43880 6

Terminal TypeScrewless Terminals

Rated Operational Voltage230 / 400 V AC

Operational VoltageMaximum (Incl. Tolerance) 440 V AC, Maximum (Incl. Tolerance) 253 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)6 kV, at 2000 m 8 kV, at Sea Level 9.8 kV

Input Voltage TypeAC

Rated Current (In)50 A

Rated Short-Circuit Capacity(230 / 400 V AC) 25 kA

Rated Frequency (f)50 / 60 Hz

Power Lossat Rated Operating Conditions per Pole 8 W

Overvoltage CategoryIV
