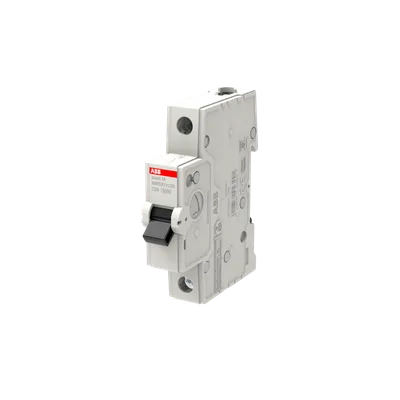

ABB 2CDS631031R0254
The basic M MCB series protects installations against overloads and short-circuits, guaranteeing reliability and safety of operations. ABB basic M series satisfies most common requirements in terms of MCBs, allowing the usage of different pole configurations, characteristics and rated currents for residential and commercial applications. This product is manufactured according to international IEC standards.
Extended Product TypeBMS311C25
Energy Limiting Class3
Electrical Endurance4000 AC cycle
Mechanical Endurance10000 cycle
Number of Protected Poles1
Number of Poles1P
About This Product
The basic M MCB series protects installations against overloads and short-circuits, guaranteeing reliability and safety of operations. ABB basic M series satisfies most common requirements in terms of MCBs, allowing the usage of different pole configurations, characteristics and rated currents for residential and commercial applications. This product is manufactured according to international IEC standards.

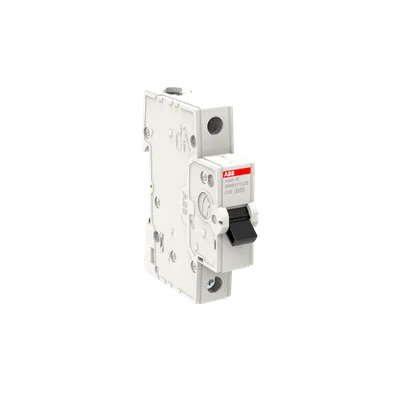

ABB 2CDS631031R0254
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeBMS311C25
Energy Limiting Class3
Electrical Endurance4000 AC cycle
Mechanical Endurance10000 cycle
Number of Protected Poles1
Number of Poles1P
Tightening Torque2 N·m
Actuator TypeToggle
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 1 ... 16 mm², Rigid 1 ... 25 mm²
Wire Stripping Length12.5 mm
Rated Operational Voltageacc. to IEC 60898-1 230 V, acc. to IEC 60947-2 440 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)25 A
Rated Short-Circuit Capacity(AC) 3 kA, (230 / 400 V AC) 3 kA, (230 V) 3 kA
Rated Frequency (f)50 / 60 Hz
Power Lossat Rated Operating Conditions per Pole 3.2 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -5 ... +55 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree2
Width in Number of Modular Spacings1.0
Built-In Depth (t2)69 mm
StandardsIEC 60898-1
