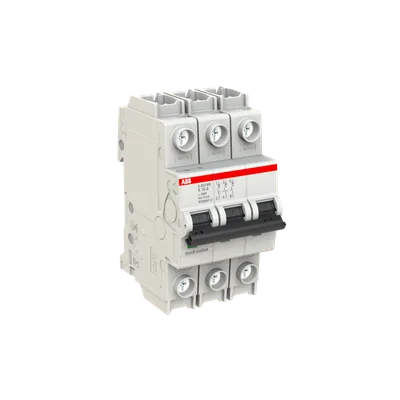

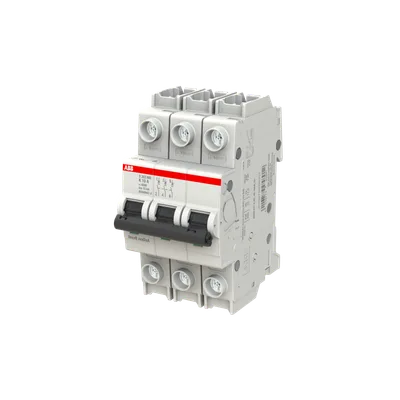

ABB 2CDS273437R0427

S203MR-K10 MCB K-Char., 10kA, 10A, 3P, RTT UL 1077, Ring Cable Lug

ABBMFR # 2CDS273437R0427SKU # YLSXTSVRCKC7J

Extended Product TypeS203MR-K10

Energy Limiting Class3

Number of Protected Poles3

Number of Poles3P

Actuator TypeToggle

Accessories AvailableYes

Have questions?Chat on WhatsApp

About This Product

S203MR-K10 MCB K-Char., 10kA, 10A, 3P, RTT UL 1077, Ring Cable Lug

ABB 2CDS273437R0427

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS203MR-K10

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 10 kA, (400 V AC) 15 kA, (400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(400 V AC) 11.2 kA

Energy Limiting Class3

Number of Protected Poles3

Number of Poles3P

Actuator TypeToggle

Accessories AvailableYes

Connecting CapacityFlexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²

Terminal TypeDouble Clamp

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 400 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)10 A

Rated Short-Circuit Capacity(230 V AC) 10 kA, (400 V AC) 10 kA

Rated Conditional Short-Circuit Current (Inc)(230 V) 10 kA, (400 V) 10 kA

Rated Frequency (f)50 / 60 Hz

Overvoltage CategoryIII

Interrupting Rating acc. to UL1077(480Y / 277 V AC) 10 kA

Ambient Air TemperatureOperation -25 ... +55 °C
