How can I get a price quote for ABB 2CDS273191R0401?

You can request a fast quote for ABB 2CDS273191R0401 from Yılsa Engineering. Reference part number YLSWJ0QPEVU5MZ3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS273191R0401 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS273191R0401 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS273191R0401?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

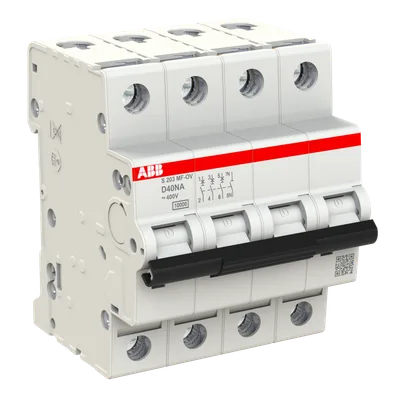

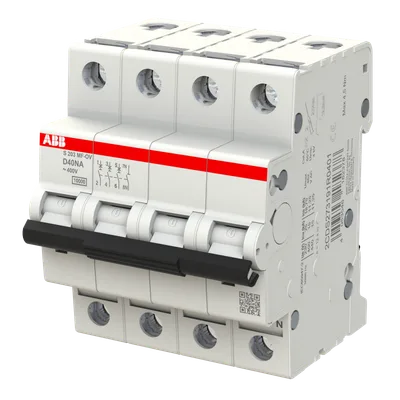

ABB 2CDS273191R0401

Miniature Circuit Breaker, S200MF-OV 10kA, D-Curve, 40A, 3P+N

ABBMFR # 2CDS273191R0401SKU # YLSWJ0QPEVU5MZ3

Extended Product TypeS203MF-OV D40NA

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationRed ON / Green OFF

Number of Protected Poles3

Number of Poles3P+N

Number of Modular Spacings per DIN Rail4

Have questions?Chat on WhatsApp

About This Product

Miniature Circuit Breaker, S200MF-OV 10kA, D-Curve, 40A, 3P+N

ABB 2CDS273191R0401

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS203MF-OV D40NA

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA, (400 V AC) 15 kA

Contact Position IndicationRed ON / Green OFF

Number of Protected Poles3

Number of Poles3P+N

Number of Modular Spacings per DIN Rail4

Actuator TypeToggle

Screw Terminal TypeFailsafe Biconnect Fork Top/Bottom

Actuator MarkingRed ON / Green OFF

Recommended Screw DriverPozidriv 2

Connecting CapacityBusbar Fork 10 / 16mm² mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 35 mm², Rigid 0.75 ... 35 mm²

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC

Operational VoltageMinimum 12 V AC

Rated Insulation Voltage (Ui)Phase to Phase 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Short-Circuit Capacity10 kA, (400 V AC) 10 kA

Rated Frequency (f)50 / 60 Hz

Overvoltage CategoryIII

Housing MaterialInsulation Group II, RAL 7035

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Degree of ProtectionIP20, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Width in Number of Modular Spacings4.0

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting Positionany

StandardsIEC/EN 60898-1, IEC/EN 60947-2

Documents & CAD

Documents 4

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

CertificateS200MF-OV VDE Approval according 60989PDF·352 KB·English

CertificateS200MF-OV VDE Approval according 60947PDF·357 KB·English

Instruction ManualEnd of Life Instruction - S200MF-OVPDF·495 KB·English
