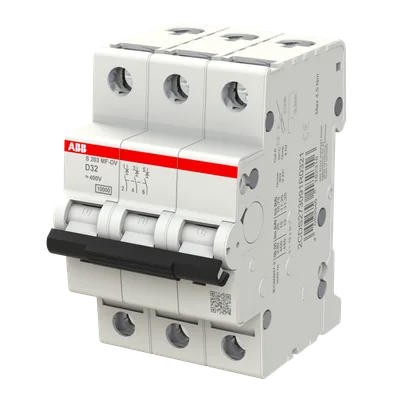

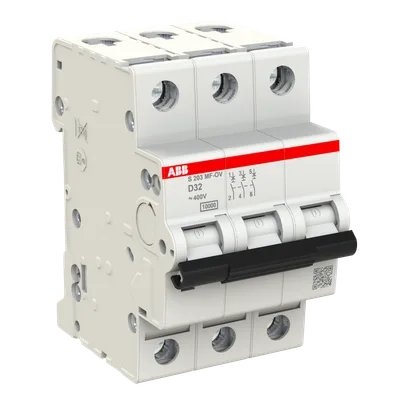

ABB 2CDS273091R0321

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS273091R0321

Miniature Circuit Breaker, S200MF-OV 10kA, D-Curve, 32A, 3P

ABBMFR # 2CDS273091R0321SKU # YLSNJPEW9OPVXYM

Extended Product TypeS203MF-OV D32

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationRed ON / Green OFF

Number of Protected Poles3

Number of Poles3P

Number of Modular Spacings per DIN Rail3

Share

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS273091R0321 (Miniature Circuit Breaker, S200MF-OV 10kA, D-Curve, 32A, 3P) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS273091R0321 — price, stock availability and technical specifications.

ABB 2CDS273091R0321

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS203MF-OV D32

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA, (400 V AC) 15 kA

Contact Position IndicationRed ON / Green OFF

Number of Protected Poles3

Number of Poles3P

Number of Modular Spacings per DIN Rail3

Actuator TypeToggle

Screw Terminal TypeFailsafe Biconnect Fork Top/Bottom

Actuator MarkingRed ON / Green OFF

Recommended Screw DriverPozidriv 2

Connecting CapacityBusbar Fork 10 / 16mm² mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 35 mm², Rigid 0.75 ... 35 mm²

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC

Operational VoltageMinimum 12 V AC

Rated Insulation Voltage (Ui)Phase to Phase 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)32 A

Rated Short-Circuit Capacity10 kA, (400 V AC) 10 kA

Rated Frequency (f)50 / 60 Hz

Overvoltage CategoryIII

Housing MaterialInsulation Group II, RAL 7035

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Degree of ProtectionIP20, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Width in Number of Modular Spacings3.0

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting Positionany

StandardsIEC/EN 60898-1, IEC/EN 60947-2

Documents & CAD

Documents 4

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

CertificateS200MF-OV VDE Approval according 60989PDF·352 KB·English

CertificateS200MF-OV VDE Approval according 60947PDF·357 KB·English

Instruction ManualEnd of Life Instruction - S200MF-OVPDF·495 KB·English
