How can I get a price quote for ABB 2CDS272566R0157?

You can request a fast quote for ABB 2CDS272566R0157 from Yılsa Engineering. Reference part number YLSUYX9LG0NW4R. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS272566R0157 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS272566R0157 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS272566R0157?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

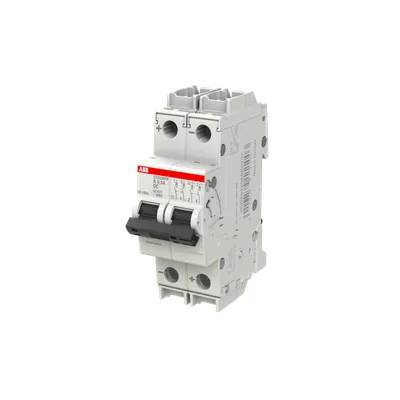

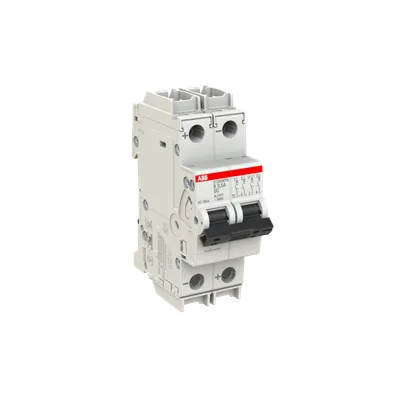

ABB 2CDS272566R0157

ST202MTR-K0,5 DC Miniature Circuit Breaker K-Char., 10kA, 0,5A, 2P

ABBMFR # 2CDS272566R0157SKU # YLSUYX9LG0NW4R

Extended Product TypeST202MTR-K0,5 DC

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationON / OFF

Energy Limiting Class3

Mechanical Endurance20000 cycle

Number of Protected Poles2

Have questions?Chat on WhatsApp

About This Product

ST202MTR-K0,5 DC Miniature Circuit Breaker K-Char., 10kA, 0,5A, 2P

ABB 2CDS272566R0157

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeST202MTR-K0,5 DC

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Contact Position IndicationON / OFF

Energy Limiting Class3

Mechanical Endurance20000 cycle

Number of Protected Poles2

Number of Poles2P

Tightening Torque2.8 N·m

Screw Terminal TypeRing-Tongue Terminal with Captive Screw

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Options ProvidedSuitable for traction application

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 16 mm²

Terminal TypeRing-Tongue Terminals

Rated Voltage (Ur)500 V DC

Rated Operational Voltage440 V AC, acc. to IEC 60947-2 240 V AC

Operational VoltageMinimum 12 V AC / 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)at Sea Level 4 kV

Input Voltage TypeDC

Rated Current (In)0.5 A

Rated Short-Circuit Capacity(400 V) 10 kA

Rated Frequency (f)50 / 60 Hz

Power Loss2.2 W

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Ambient Air TemperatureOperation -40 ... +75 °C, Storage -40 ... +75 °C

Degree of ProtectionIP20, Enclosure with Cover IP20

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsUL 1077, CSA 22.2 No. 235

Certification AgencyIEC

Documents & CAD

Documents 7

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

DatasheetST 200 M Technical Data SheetPDF·1.2 MB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

Instruction ManualEoL instruction S200MTR, ST200MTR, S200MRPDF·388 KB·English

CertificateEPD MCB Compact S200MTR, S200MTR-DC, ST200MTR, ST200MTR-DC and S200MR FamilyPDF·269 KB·English

CertificateUKCA declaration S200MTR and ST200MTRPDF·91 KB·English

CertificateEU_declaration_of_conforminty_MTRPDF·237 KB·English
