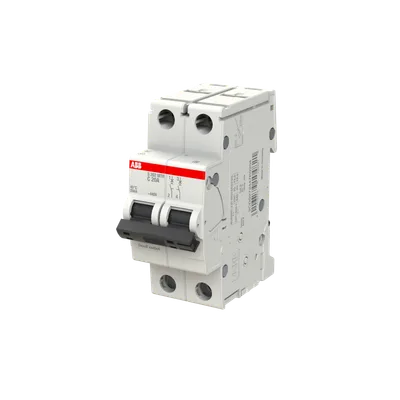

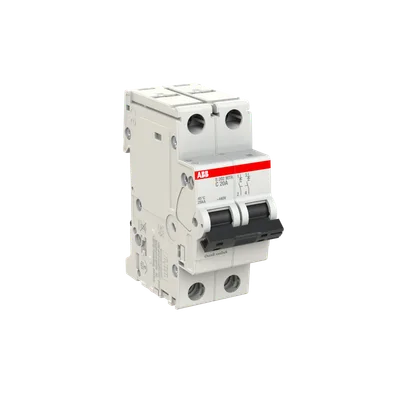

ABB 2CDS272447R0204

S202MTR-C20 Miniature Circuit Breaker C-Char., 10kA, 20A, 2P

ABBMFR # 2CDS272447R0204SKU # YLS6X5URYZIQBK

Extended Product TypeS202MTR-C20

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Mechanical Endurance20000 cycle

Have questions?Chat on WhatsApp

About This Product

S202MTR-C20 Miniature Circuit Breaker C-Char., 10kA, 20A, 2P

ABB 2CDS272447R0204

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS202MTR-C20

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)25 kA, (230 V) 25 kA, (400 V) 25 kA

Rated Service Short-Circuit Breaking Capacity (Ics)12.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Mechanical Endurance20000 cycle

Number of Protected Poles2

Number of Poles2P

Tightening Torque2.8 N·m

Screw Terminal TypeRing-Tongue Terminal with Captive Screw

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Options ProvidedSuitable for traction application

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 16 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm²

Terminal TypeRing-Tongue Terminals

Rated Voltage (Ur)440 V

Rated Operational Voltage440 V AC, acc. to IEC 60898-1 440 V, acc. to IEC 60947-2 240 V AC

Operational VoltageMinimum 12 V AC / 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)at Sea Level 4 kV

Input Voltage TypeAC

Rated Current (In)20 A

Rated Short-Circuit Capacity10 kA, (230 V) 10 kA, (400 V) 25 kA

Rated Frequency (f)50 / 60 Hz

Power Loss6.1 W

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Ambient Air TemperatureOperation -40 ... +75 °C, Storage -40 ... +75 °C

Degree of ProtectionIP20, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings2.0

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsIEC/EN 60947-2

Certification AgencyIEC

Documents & CAD

Documents 11

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

CertificateIHM declaration MCBs and AccessoriesPDF·278 KB·English

Instruction ManualEoL instruction S200MTR, ST200MTR, S200MRPDF·388 KB·English

CertificateEPD MCB Compact S200MTR, S200MTR-DC, ST200MTR, ST200MTR-DC and S200MR FamilyPDF·269 KB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S200MTR,Made in GermanyPDF·2.9 MB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S200MTR DC,Made in GermanyPDF·3.0 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S200MTR,Made in GermanyPDF·1.8 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S200MTR DC,Made in GermanyPDF·2.2 MB·English

CertificateUKCA declaration S200MTR and ST200MTRPDF·91 KB·English

CertificateEU_declaration_of_conforminty_MTRPDF·237 KB·English

CAD Files 1

3D Model

STEP.stp · 62.8 MB
