How can I get a price quote for ABB 2CDS271347R0217?

You can request a fast quote for ABB 2CDS271347R0217 from Yılsa Engineering. Reference part number YLSPUYHDITMFJGL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS271347R0217 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS271347R0217 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS271347R0217?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

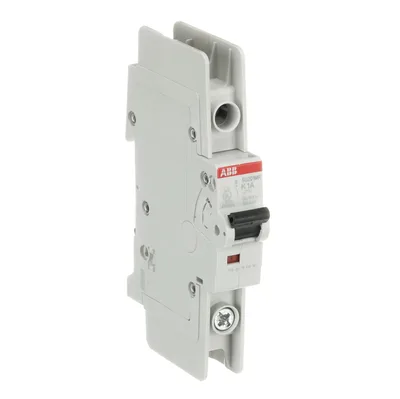

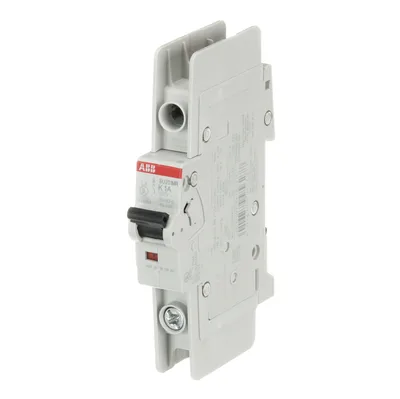

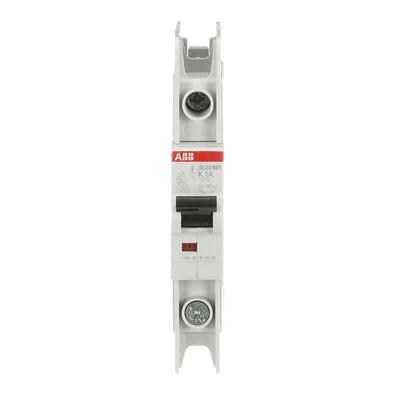

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS271347R0217

SU201MR-K1 MCB K-Char., 10kA, 1A, 1P, RTT UL 489, Ring Cable Lug

ABBMFR # 2CDS271347R0217SKU # YLSPUYHDITMFJGL

Extended Product TypeSU201MR-K1

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Actuator TypeToggle

Screw Terminal TypeRing-Tongue Terminal with Captive Screw

Have questions?Chat on WhatsApp

About This Product

SU201MR-K1 MCB K-Char., 10kA, 1A, 1P, RTT UL 489, Ring Cable Lug

ABB 2CDS271347R0217

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSU201MR-K1

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 15 kA, (400 V AC) 10 kA, (400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 10 kA

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Actuator TypeToggle

Screw Terminal TypeRing-Tongue Terminal with Captive Screw

Options ProvidedRing tongue

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²

Terminal TypeRing-Tongue Terminals

Rated Operational Voltageacc. to IEC 60898-1 230 V AC, acc. to IEC 60947-2 230 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)1 A

Rated Short-Circuit Capacity(230 V AC) 10 kA, (400 V AC) 10 kA

Rated Conditional Short-Circuit Current (Inc)(230 V) 10 kA, (400 V) 10 kA

Rated Frequency (f)50 / 60 Hz

Power Loss1.4 W, at Rated Operating Conditions per Pole 1.4 W

Overvoltage CategoryIII

Interrupting Rating acc. to UL489(240 V AC) 10 kA, (277 V AC) 10 kA, (48 V DC) 10 kA
