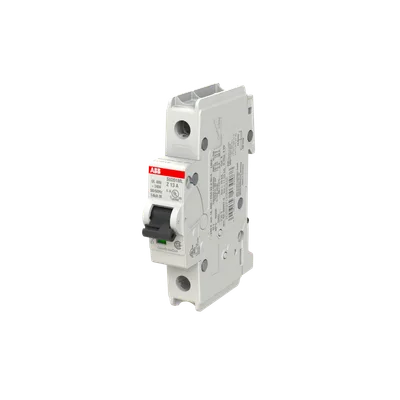

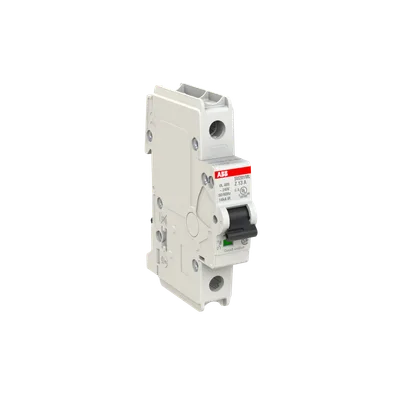

ABB 2CDS271339R0448

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS271339R0448

SU201ML-Z13 Miniature Circuit Breaker SU201ML-Z13 Miniature Circuit Breaker Z-Char., 10kA, 13A, 1P

ABBMFR # 2CDS271339R0448SKU # YLSGECFXITD3WA5

Extended Product TypeSU201ML-Z13

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Accessories AvailableYes

Terminal TypeDouble Clamp

Share

Have questions?Chat on WhatsApp

About This Product

SU201ML-Z13 Miniature Circuit Breaker SU201ML-Z13 Miniature Circuit Breaker Z-Char., 10kA, 13A, 1P

ABB 2CDS271339R0448

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSU201ML-Z13

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 15 kA, (230 V) 15 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 11.2 kA

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Accessories AvailableYes

Connecting CapacityFlexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm²

Terminal TypeDouble Clamp

Rated Operational Voltageacc. to IEC 60898-1 230 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 400 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC/DC

Rated Current (In)13 A

Rated Frequency (f)50 / 60 Hz

Overvoltage CategoryIII

Interrupting Rating acc. to UL489(240 V AC) 14 kA, (48 V DC) 14 kA

Ambient Air TemperatureOperation -25 ... +55 °C

Degree of ProtectionIP20, IP40

Pollution Degree3

Width in Number of Modular Spacings1.0

Built-In Depth (t2)69 mm

StandardsCSA 22.2 No. 5, IEC/EN 60947-2, UL 489

Certification AgencyCSA, EN, IEC, UL
