ABB 2CDS271339R0164

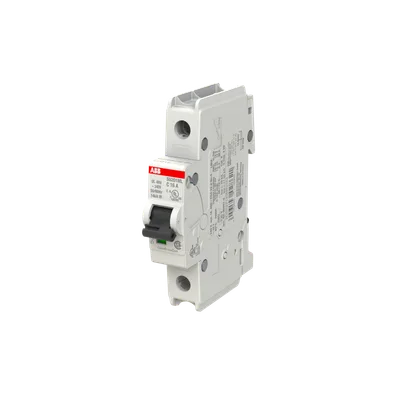

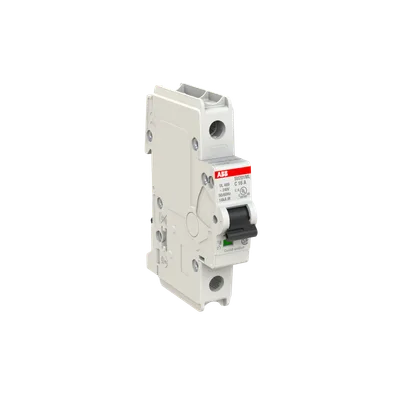

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS271339R0164

SU201ML-C16 Miniature Circuit Breaker SU201ML-C16 Miniature Circuit Breaker C-Char., 10kA, 16A, 1P

ABBMFR # 2CDS271339R0164SKU # YLSA9W0FNKMDQC
Extended Product TypeSU201ML-C16
Energy Limiting Class3
Number of Protected Poles1
Number of Poles1P
Accessories AvailableYes
Terminal TypeDouble Clamp
Share
Have questions?Chat on WhatsApp

About This Product

SU201ML-C16 Miniature Circuit Breaker SU201ML-C16 Miniature Circuit Breaker C-Char., 10kA, 16A, 1P

ABB 2CDS271339R0164

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeSU201ML-C16
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 15 kA, (230 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 11.2 kA
Energy Limiting Class3
Number of Protected Poles1
Number of Poles1P
Accessories AvailableYes
Connecting CapacityFlexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm²
Terminal TypeDouble Clamp
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 400 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC/DC
Rated Current (In)16 A
Rated Frequency (f)50 / 60 Hz
Overvoltage CategoryIII
Interrupting Rating acc. to UL489(240 V AC) 14 kA, (48 V DC) 14 kA
Ambient Air TemperatureOperation -25 ... +55 °C
Degree of ProtectionIP20, IP40
Pollution Degree3
Width in Number of Modular Spacings1.0
Built-In Depth (t2)69 mm
StandardsCSA 22.2 No. 5, IEC/EN 60947-2, UL 489
Certification AgencyCSA, EN, IEC, UL

Documents & CAD

Documents 18

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English
CertificateProduct Information TCSA 6(h)PDF·362 KB·English
CertificateIHM declaration MCBs and AccessoriesPDF·278 KB·English
CertificateEPD MCB Compact (SU200M, SU200ML, SU200MR and SUP200M) FamilyPDF·183 KB·English
DatasheetSU200ML Miniature Circuit Breakers Data Sheet - United States (9AKK107046A9269-US)PDF·1.3 MB·English
CertificateCertificate KC acc. to 60947 Made in BulgariaPDF·622 KB·English
CertificateCertificate KC acc. to 60947 Made in GermanyPDF·905 KB·English
CertificateCertificate CCA acc. to 60947 Made in BulgariaPDF·90 KB·English
CertificateCertificate CB acc. to 60947 Made in BulgariaPDF·119 KB·English
CertificateCertificate VDE acc. to 60947 Made in GermanyPDF·285 KB·English
DatasheetSU200ML DatasheetPDF·1.6 MB·English
CertificateCertificate CSA acc. to CSA22.2 No.5 Made in GermanyPDF·32 KB·English
CertificateCertificate UL acc. to UL489 Made in GermanyPDF·314 KB·English
CertificateCertificate CCA acc. to 60947 Made in Germany - Update On GoingPDF·80 KB·English
CertificateCertificate CB acc. to 60947 Made in Germany - Update On GoingPDF·102 KB·English
DatasheetSU200MR Miniature Circuit Breaker acc. to CSA C22.2 No.5 / UL489PDF·1.2 MB·English
DatasheetSU 200 ML Wiring fact sheetPDF·184 KB·English
CertificateCertificate VDE acc. to 60947 for SU200ML Made in GermanyPDF·279 KB·English
