How can I get a price quote for ABB 2CDS253003R0064?

You can request a fast quote for ABB 2CDS253003R0064 from Yılsa Engineering. Reference part number YLSZP55VUZ6NYVJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS253003R0064 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS253003R0064 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS253003R0064?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

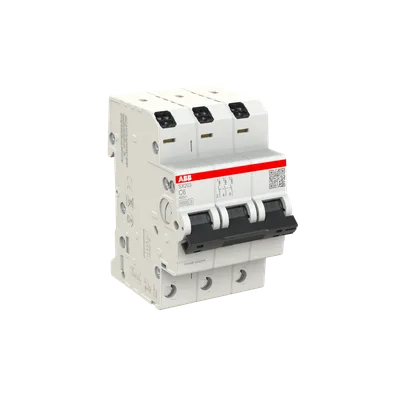

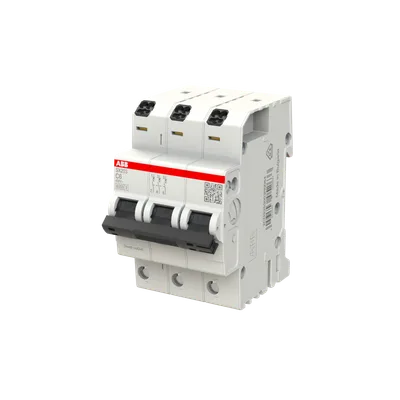

ABB 2CDS253003R0064

The SX200 series miniature circuit breaker for protection of circuits against overload and short circuit. SX200 is part of the FlexLine portfolio.

ABBMFR # 2CDS253003R0064SKU # YLSZP55VUZ6NYVJ

Extended Product TypeSX203-C6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Have questions?Chat on WhatsApp

About This Product

The SX200 series miniature circuit breaker for protection of circuits against overload and short circuit. SX200 is part of the FlexLine portfolio.

ABB 2CDS253003R0064

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSX203-C6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P

Tightening Torque1.2 N·m

Actuator TypeToggle

Screw Terminal TypeBridge Clamp

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableNo

Connecting CapacityPush-in / Flexible With Insulated Ferrule 2 x 1...2.5 mm², Push-in / Flexible Without Insulated Ferrule 2 x 1...2.5 mm², Push-in / Rigid 2 x 1...4 mm², Screw Clamp / Flexible 1 ... 10 mm², Screw Clamp / Rigid 1 ... 10 mm², Screw Clamp / With Insulated Ferrrule 1 ... 6 mm², Screw Clamp / Without Insulated Ferrule 1 ... 6 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length12 mm

Terminal TypeScrewless Terminals

Rated Operational Voltageacc. to IEC 60898-1 440 V AC

Operational VoltageMinimum 12 V AC / 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Short-Circuit Capacity(AC) 6 kA, (400 V AC) 6 kA, (400 V) 6 kA

Rated Frequency (f)50 / 60 Hz

Power Loss3.6 W, at Rated Load 1.2 W, at Rated Operating Conditions per Pole 1.2 W
