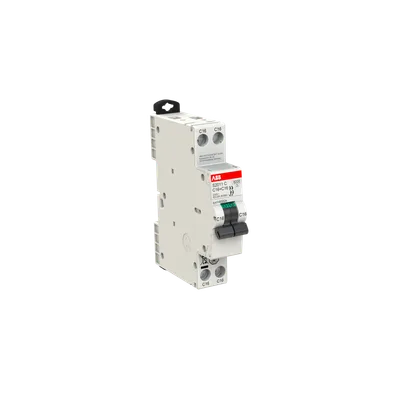

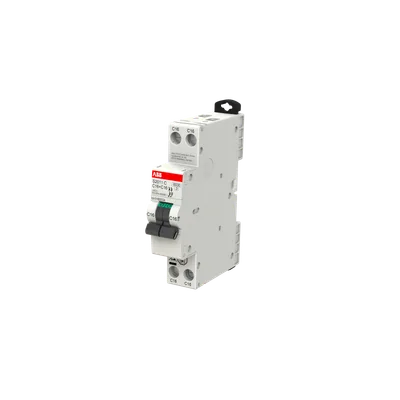

ABB 2CDS251281R0134
The S2011C series miniature circuit breaker is a 1P+1P device in 1 module for the protection of circuits against overload and short circuit. The two poles are independent, with two different toggles and tripping mechanism
Extended Product TypeS2011C-C13
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles2
About This Product
The S2011C series miniature circuit breaker is a 1P+1P device in 1 module for the protection of circuits against overload and short circuit. The two poles are independent, with two different toggles and tripping mechanism
ABB 2CDS251281R0134
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS2011C-C13
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 52 %
Sustainable Material Content in Packaging (wt. %)FSC 100% Cardboard - 100 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 6 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles2
Number of Poles2P
Options ProvidedG2C accessories
Accessories AvailableYes
Connecting CapacityFlexible 1 … 10 mm², Rigid 1 … 16 mm²
Rated Operational Voltageacc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)13 A
Rated Short-Circuit Capacity(230 V) 6 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 6 kA
Rated Frequency (f)50/60 Hz
Power LossTotal 3.8 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 ... +55 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings1
Built-In Depth (t2)70 mm
StandardsIEC/EN 60898-1
