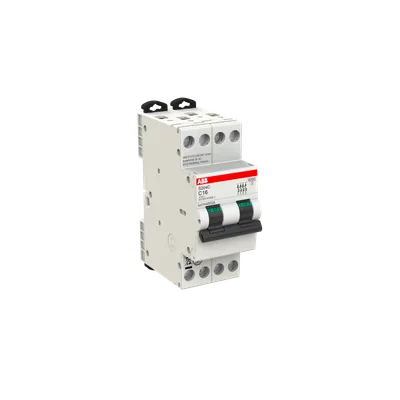

ABB 2CDS244280R0065
The S204C series miniature circuit breaker is a 4P device in 2 modules for the protection of circuits against overload and short circuit.
Extended Product TypeS204CL-B6
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles4
About This Product
The S204C series miniature circuit breaker is a 4P device in 2 modules for the protection of circuits against overload and short circuit.
ABB 2CDS244280R0065
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS204CL-B6
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 52 %
Sustainable Material Content in Packaging (wt. %)FSC 100% Cardboard - 100 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 6 kA, (400 V) 6 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles4
Number of Poles4P
Options ProvidedG2C accessories
Accessories AvailableYes
Connecting CapacityFlexible 1 … 10 mm², Rigid 1 … 16 mm²
Rated Operational Voltageacc. to IEC 60898-1 415 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)6 A
Rated Short-Circuit Capacity(230 V) 4.5 kA, (400 V) 4.5 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 6 kA, (400 V) 6 kA
Rated Frequency (f)50/60 Hz
Power LossTotal 6.1 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 ... +55 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings2
Built-In Depth (t2)70 mm
StandardsIEC/EN 60898-1
