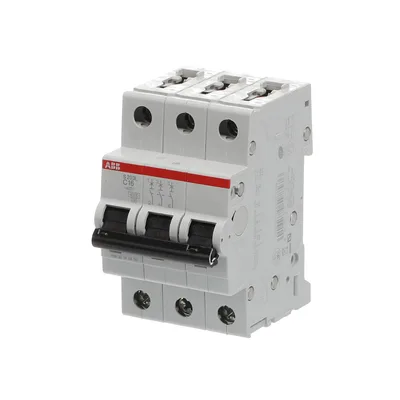

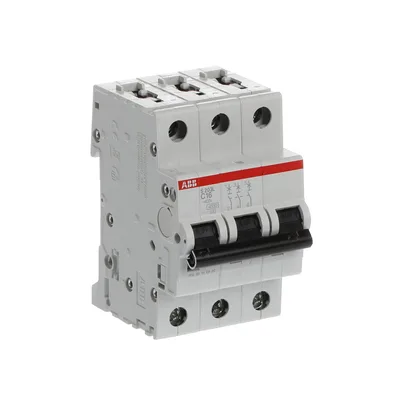

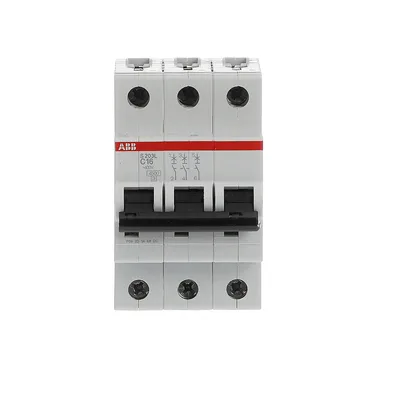

ABB 2CDS243701R0164

S203L-C 16 MiniCircuitBreaker C-Char.,4,5kA,16A,3P

ABBMFR # 2CDS243701R0164SKU # YLSWO4MI0QHVAK

Extended Product TypeS203L-C16

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS243701R0164 (S203L-C 16 MiniCircuitBreaker C-Char.,4,5kA,16A,3P) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS243701R0164 — price, stock availability and technical specifications.

ABB 2CDS243701R0164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS203L-C16

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 10 kA, (400 V AC) 6 kA, (230 V) 10 kA, (400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 7.5 kA, (400 V AC) 4.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P

Tightening Torque2.8 N·m

Actuator TypeToggle

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 10/10 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60898-1 400 V, acc. to IEC 60947-2 400 V AC

Operational VoltageMaximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Short-Circuit Capacity(AC) 4.5 kA, (DC) 4.5 kA, (400 V AC) 4.5 kA, (400 V) 4.5 kA

Rated Conditional Short-Circuit Current (Inc)(400 V) 6 kA

Rated Frequency (f)50 / 60 Hz

Power Loss7.5 W, at Rated Operating Conditions per Pole 2.5 W

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Connecting Capacity UL/CSABusbar 18-8 AWG, Conductor 18-4 AWG

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20, IP40, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings3.0

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsIEC/EN 60898-1, IEC/EN 60947-2

Certification AgencyEN, IEC

Documents & CAD

Documents 71

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

CertificateEPD MCB- S200 (..M, SC.., ..L, SZ.., ST.., ..MTUC, ..MT & ..MUC) EUPDF·225 KB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

Instruction ManualEnd of life instruction S200, S200L, SZ200, SC200, S200M, S200M(T)UCPDF·330 KB·English

Instruction ManualS200, S300 instruction manualPDF·5.7 MB·English

CertificateEPD MCB Compact S200 (...M, SC..., ST..., ...MTUC, ...MT & MUC) familyPDF·221 KB·English

CertificateCertificate CCA acc. to 60898 for B-C-D Made in ChinaPDF·100 KB·English

CertificateCertificate CB acc. to 60898 for B-C-D Made in ChinaPDF·91 KB·English

CertificateCertificate CCA acc. to 60898 for B-C-D Made in Germany - Update On GoingPDF·82 KB·English

CertificateCertificate BBJ acc. to 60898 for B-C-D Made in GermanyPDF·3.0 MB·English

CertificateCertificate OEVE acc. to 60898 for B-C-D Made in ChinaPDF·372 KB·English

CertificateCertificate OEVE acc. to 60898 for B-C-D Made in GermanyPDF·372 KB·English

CertificateCertificate SIQ acc. to 60898 for B-C-D Made in BulgariaPDF·934 KB·English

CertificateCertificate SIQ acc. to 60898 for B-C-D Made in GermanyPDF·943 KB·English

CertificateCertificate SEMKO acc. to 60898 for B-C-D Made in ChinaPDF·197 KB·English

CertificateCertificate EAC for B-C-D-K-Z Made in ChinaPDF·3.8 MB·English

Technical DrawingDimensioned drawing S200, S200L, S200MPDF·421 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateCertificate CB acc. to 60898 for B-C-D Made in BulgariaPDF·115 KB·English

CertificateCertificate CCA acc. to 60898 for B-C-D Made in BulgariaPDF·94 KB·English

CertificateCertificate EZU acc. to 60898 for B-C-D Made in ChinaPDF·69 KB·English

CertificateCertificate EZU acc. to 60898 for B-C-D Made in GermanyPDF·75 KB·English

CertificateCertificate IMQ acc. to 60898 for B-C-D Made in GermanyPDF·340 KB·English

CertificateCertificate AENOR acc. to 60898 for B-C-D Made in GermanyPDF·591 KB·English

CertificateCertificate FIMKO acc. to 60898 for B-C-D Made in GermanyPDF·461 KB·English

CertificateCertificate ESTI acc. to 60898 for B-C-D Made in GermanyPDF·5.0 MB·English

CertificateCertificate S-IRAM acc. to 60898 for B-C-D Made in GermanyPDF·1.1 MB·English

CertificateCertificate EAC for B-C-D-K-Z Made in BulgariaPDF·1.9 MB·English

CertificateCertificate VDE acc. to 60947 for B-C-D Made in ChinaPDF·629 KB·English

CertificateCertificate CCA acc. to 60947 for B-C-D Made in Argentina - Update On GoingPDF·726 KB·English

CertificateCertificate CEBEC acc. to 60898 for B-C-D Made in ChinaPDF·1.2 MB·English

CertificateCertificate AENOR acc. to 60898 for B-C-D Made in BulgariaPDF·649 KB·English

CertificateCertificate VDE acc. to 60947 for B-C Made in ArgentinaPDF·283 KB·English

CertificateCertificate EZU acc. to 60898 for B-C-D Made in BulgariaPDF·67 KB·English

CertificateCertificate CCA acc. to 60898 for B-C Made in Argentina - Update On GoingPDF·701 KB·English

CertificateCertificate CB acc. to 60898 for B-C Made in Argentina - Update On GoingPDF·947 KB·English

CertificateCertificate VDE acc. to 60898 for B-C Made in ArgentinaPDF·269 KB·English

CertificateCertificate SIQ acc. to 60898 for B-C-D Made in ChinaPDF·959 KB·English

CertificateCertificate CCA acc. to 60947 for B-C-D Made in BulgariaPDF·131 KB·English

CertificateCertificate CB acc. to 60947 for B-C-D Made in BulgariaPDF·159 KB·English

CertificateCertificate VDE acc. to 60947 for B-C-D Made in BulgariaPDF·318 KB·English

CertificateCertificate DEMKO acc. to 60898 for B-C-D Made in BulgariaPDF·325 KB·English

CertificateCertificate CEBEC acc. to 60898 for B-C-D Made in BulgariaPDF·1.1 MB·English

CertificateCertificate BBJ acc. to 60898 for B-C-D Made in BulgariaPDF·217 KB·English

CertificateCertificate SAA_Standard: 60898_Tripping Characteristic:B-C-D_Made in: Germany; China; Bulgaria;PDF·305 KB·English

CertificateCertificate VDE acc. to 60898 for B-C-D Made in BulgariaPDF·286 KB·English

CertificateCertificate AENOR acc. to 60898 for B-C-D Made in China - Update On GoingPDF·662 KB·English

CertificateCertificate CCA acc. to 60947 for B-C-D Made in Germany - Update On GoingPDF·93 KB·English

CertificateCertificate CB acc. to 60947 for B-C-D Made in Germany - Update On GoingPDF·116 KB·English

CertificateCertificate CB acc. to 60898 for B-C-D Made in Germany - Update On GoingPDF·102 KB·English

CertificateCertificate VDE acc. to 60898 for B-C-D Made in ChinaPDF·265 KB·English

CertificateCertificate VDE acc. to 60898 for B-C-D Made in GermanyPDF·271 KB·English

CertificateCertificate VDE acc. to 60947 for B-C-D Made in GermanyPDF·271 KB·English

CertificateCertificate SEMKO acc. to 60898 for B-C-D Made in GermanyPDF·299 KB·English

CertificateCertificate NF acc. to 60898 for B-C-D Made in GermanyPDF·5.5 MB·English

CertificateCertificate NEMKO acc. to 60898 for B-C-D Made in GermanyPDF·214 KB·English

CertificateCertificate KEMA acc. to 60898 for B-C-D Made in GermanyPDF·2.2 MB·English

CertificateCertificate IMQ acc. to 60898 for B-C-D Made in GermanyPDF·317 KB·English

CertificateCertificate DEMKO acc. to 60898 for B-C-D Made in GermanyPDF·341 KB·English

CertificateCertificate CERTIF acc. to 60898 for B-C-D Made in GermanyPDF·205 KB·English

CertificateCertificate CEBEC acc. to 60898 for B-C-D Made in GermanyPDF·900 KB·English

CertificateCertificate CCA acc. to 60898 for B-C-D Made in Germany - Update On GoingPDF·82 KB·English

CertificateCertificate CB acc. to 60898 for B-C-D Made in Germany - Update On GoingPDF·102 KB·English

CertificateCertificate VDE acc. to 60898 for B-C-D Made in GermanyPDF·682 KB·English

CertificateCertificate SEMKO acc. to 60898 for B-C-D Made in GermanyPDF·916 KB·English

CertificateCertificate BBJ_Standard: 60898_Tripping Characteristic:B-C-DPDF·1.5 MB·English

CertificateCertificate NF acc. to 60898 for B-C-D Made in GermanyPDF·5.9 MB·English

CertificateCertificate KEMA acc. to 60898 for B-C-D Made in GermanyPDF·213 KB·English

CertificateCertificate DEMKO acc. to 60898 for B-C-D Made in GermanyPDF·363 KB·English

CertificateCertificate EZU acc. to 60898 for B-C-D Made in GermanyPDF·74 KB·English

CertificateCertificate CEBEC acc. to 60898 for B-C-D Made in GermanyPDF·612 KB·English

CAD Files 8

3D Model

2D Drawing
