How can I get a price quote for ABB 2CDS243701R0104?

You can request a fast quote for ABB 2CDS243701R0104 from Yılsa Engineering. Reference part number YLSL0GMEFWDAJKB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDS243701R0104 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDS243701R0104 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDS243701R0104?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

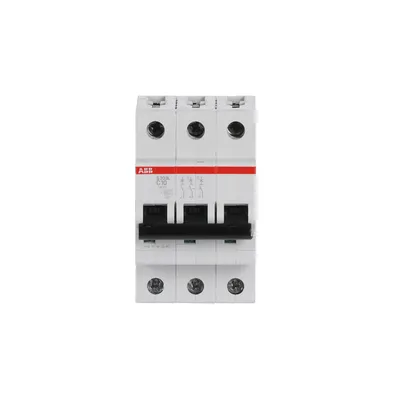

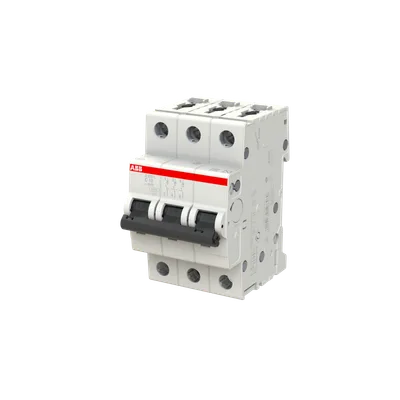

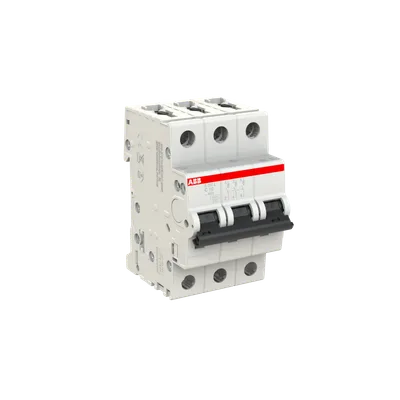

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDS243701R0104

S203L-C 10 MiniCircuitBreaker C-Char.,4,5kA,10A,3P

ABBMFR # 2CDS243701R0104SKU # YLSL0GMEFWDAJKB

Extended Product TypeS203L-C10

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS243701R0104 (S203L-C 10 MiniCircuitBreaker C-Char.,4,5kA,10A,3P) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS243701R0104 — price, stock availability and technical specifications.

ABB 2CDS243701R0104

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS203L-C10

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 10 kA, (400 V AC) 6 kA, (230 V) 10 kA, (400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 7.5 kA, (400 V AC) 4.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P

Tightening Torque2.8 N·m

Actuator TypeToggle

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 10/10 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60898-1 400 V, acc. to IEC 60947-2 400 V AC

Operational VoltageMaximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)10 A

Rated Short-Circuit Capacity(AC) 4.5 kA, (DC) 4.5 kA, (400 V AC) 4.5 kA, (400 V) 4.5 kA

Rated Conditional Short-Circuit Current (Inc)(400 V) 6 kA

Rated Frequency (f)50 / 60 Hz

Power Loss6.3 W, at Rated Operating Conditions per Pole 2.1 W

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Connecting Capacity UL/CSABusbar 18-8 AWG, Conductor 18-4 AWG

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20, IP40, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings3.0

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsIEC/EN 60898-1, IEC/EN 60947-2

Certification AgencyEN, IEC
