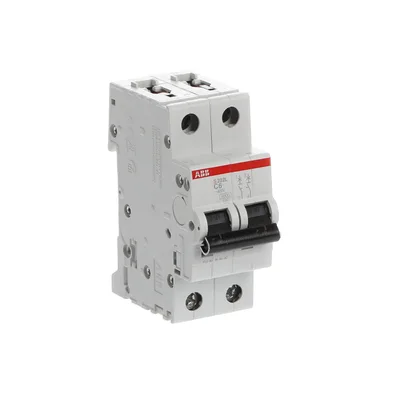

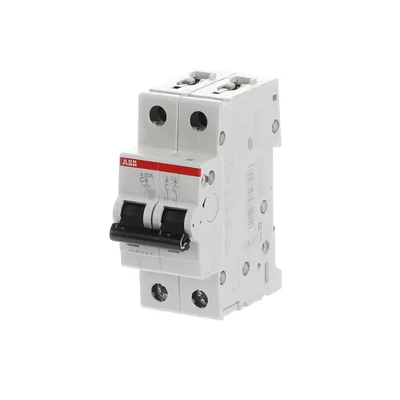

ABB 2CDS242701R0064

S202L-C 6 MiniCircuitBreaker C-Char.,4,5kA,6A,2P

ABBMFR # 2CDS242701R0064SKU # YLS1ZXFLB7U3ZDA

Extended Product TypeS202L-C6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CDS242701R0064 (S202L-C 6 MiniCircuitBreaker C-Char.,4,5kA,6A,2P) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS242701R0064 — price, stock availability and technical specifications.

ABB 2CDS242701R0064

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS202L-C6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 10 kA, (400 V AC) 6 kA, (230 V) 10 kA, (400 V) 6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 7.5 kA, (400 V AC) 4.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles2

Number of Poles2P

Tightening Torque2.8 N·m

Actuator TypeToggle

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 10/10 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length12.5 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60898-1 400 V, acc. to IEC 60947-2 400 V AC

Operational VoltageMaximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Short-Circuit Capacity(AC) 4.5 kA, (DC) 4.5 kA, (400 V AC) 4.5 kA, (400 V) 4.5 kA

Rated Conditional Short-Circuit Current (Inc)(400 V) 5 kA

Rated Frequency (f)50 / 60 Hz

Power Loss4 W, at Rated Operating Conditions per Pole 2 W

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Connecting Capacity UL/CSABusbar 18-8 AWG, Conductor 18-4 AWG

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20, IP40, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings2.0

Pole Net Weight0.125 kg

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsIEC/EN 60898-1, IEC/EN 60947-2

Certification AgencyEN, IEC
