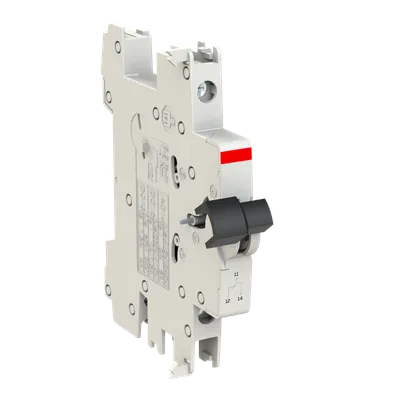

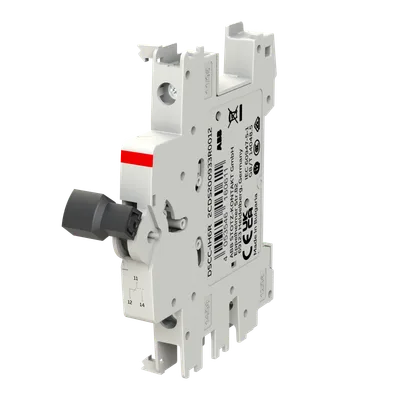

ABB 2CDS200933R0012
DSCC-IH6R Auxiliary Contact 1 CO
Extended Product TypeDSCC-IH6R
Offered with Takeback ServicesTake Back for Recycling
Suitable for Product ClassAuxiliary switch/relay
Dielectric Test Voltage50 / 60 Hz - 1 min 2.5 kV
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
About This Product
ABB 2CDS200933R0012 (DSCC-IH6R Auxiliary Contact 1 CO) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDS200933R0012 — price, stock availability and technical specifications.
ABB 2CDS200933R0012
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDSCC-IH6R
Offered with Takeback ServicesTake Back for Recycling
Suitable ForDS202CR, DSE201NS, DSN201E, GS201C, S201NC
Suitable for Product ClassAuxiliary switch/relay
Dielectric Test Voltage50 / 60 Hz - 1 min 2.5 kV
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Tightening Torque2.8 N·m
Accessory TypeAuxiliary Contact
Accessories AvailableYes
Connecting CapacityFlexible 0.75 ... 25 mm²
Terminal TypeScrew Terminals
Rated Operational Current AC-14 (Ie)(230 V) 6.3 A, (400 V) 6.3 A
Rated Operational Current DC-13 (Ie)(24 V) 4 A, (60 V) 1.5 A
Operational VoltageMinimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 415 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Input Voltage TypeAC/DC
Number of Auxiliary Contacts CO (SPDT)1
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree3
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g at 24V AC/DC, 5mA 5 ... 150 ... 5Hz Hz
Resistance to Shock acc. to IEC 60068-2-2725g 3 shocks 13 ms
Width in Number of Modular Spacings0.5
Mounting Positionright
StandardsIEC 60947-5-1
