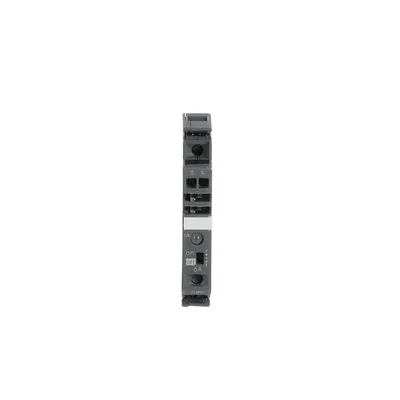

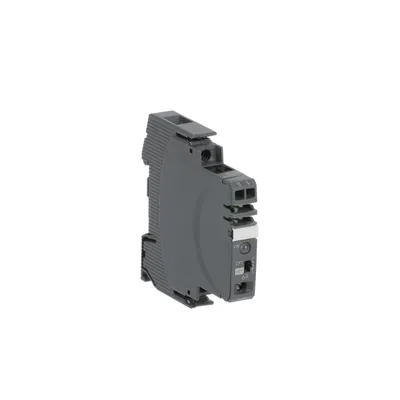

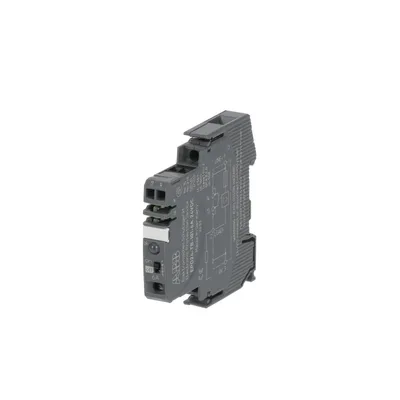

ABB 2CDE601101R2006

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDE601101R2006

The EPD24 protection devices expand ABB's product portfolio of DIN rail mounted devices with electronic overcurrent protection modules for selective protection of 24 V DC load circuits. Faults in individual branches caused by overload or short circuit are detected and selectively switched off so that other load current paths remain unaffected by the fault. In this way straightforward, quick troubleshooting is made possible.

ABBMFR # 2CDE601101R2006SKU # YLSG3CFTJLYCW18

Extended Product TypeEPD24-TB-101-6A

Maximum Load Capacity20000 µF

Number of Auxiliary Contacts NO1

Number of Channels1

Signal Indication Fault (LED)Red

Trip TypeElectronic

Share

Have questions?Chat on WhatsApp

About This Product

The EPD24 protection devices expand ABB's product portfolio of DIN rail mounted devices with electronic overcurrent protection modules for selective protection of 24 V DC load circuits. Faults in individual branches caused by overload or short circuit are detected and selectively switched off so that other load current paths remain unaffected by the fault. In this way straightforward, quick troubleshooting is made possible.

ABB 2CDE601101R2006

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeEPD24-TB-101-6A

Maximum Load Capacity20000 µF

Output SignalOperating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.

Number of Auxiliary Contacts NO1

Number of Channels1

Signal Indication Fault (LED)Red

Tightening TorqueAuxiliary Circuit 0.5 N·m, L/N Terminals 1.5-1.8_NU N·m

Trip TypeElectronic

Status IndicatorYes

Additional InformationBackup fuse for EPD24 not required

Recommended Screw DriverScrew Slot

Accessories AvailableYes

OutputPower MOSFET Switching Output (Positive Switching) without Galvanic Isolation

Operating Humidity (RHamb)96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Rated Voltage (Ur)24 V DC

Operational VoltageMaximum 18..32 V DC

Rated Current (In)6 A

Power Loss1.5 W

Housing MaterialMoulded

RAL NumberRAL 7012 - Basalt Grey

Colordark grey

Ambient Air TemperatureOperation -25 ... +60 °C, Storage -40 ... +70 °C

Degree of ProtectionHousing IP20, Terminals IP20

Pollution Degree2

Mounting on DIN RailTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

StandardsCSA 22.2, UL 2367 recognized, UL 508 listed, UL 121201

Certification AgencyUKCA

Standardization BodyCSA

Documents & CAD

Documents 4

CertificateCertificate of Compliance UL508: E321314PDF·775 KB·English

DatasheetEPD24 electronic protection device: selective protection of 24VDC load circuitsPDF·1.3 MB·English

CertificateCertificate of Compliance UL2367: E339236PDF·232 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CAD Files 2

3D Model
