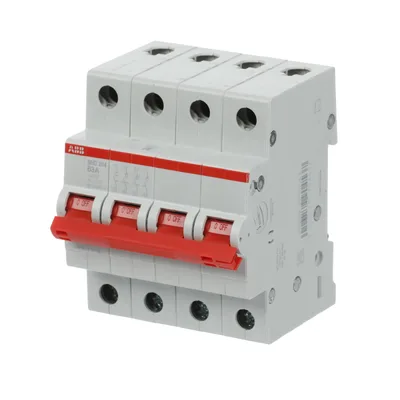

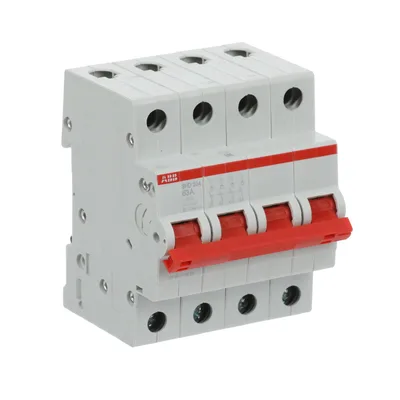

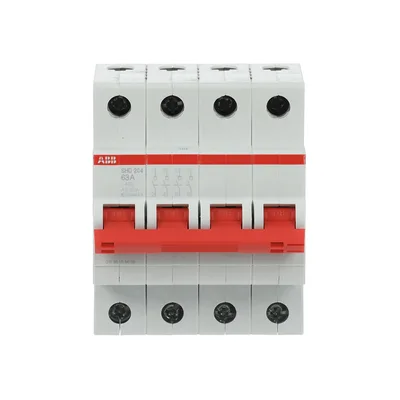

ABB 2CDD274111R0063
SHD204/63 - Switch Disconnector 4P, 63A
Extended Product TypeSHD204/63
Electrical Endurance10000 AC cycle
Mechanical Endurance20000 cycle
Number of Poles4P
Tightening Torque2 N·m
Screw Terminal TypeCable Clamp
About This Product
ABB 2CDD274111R0063 (SHD204/63 - Switch Disconnector 4P, 63A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDD274111R0063 — price, stock availability and technical specifications.
ABB 2CDD274111R0063
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeSHD204/63
Electrical Endurance10000 AC cycle
Mechanical Endurance20000 cycle
Number of Poles4P
Tightening Torque2 N·m
Utilization CategorySwitching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)
Screw Terminal TypeCable Clamp
Switch TypeOff
Actuator MarkingI / O
Actuator MaterialInsulation Group II, Red, Sealable
Recommended Screw DriverPozidriv 2
Accessories AvailableNo
Cover ColorGrey
Connecting CapacityFlexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²
Installation Sizeacc. to DIN 43880 3
Terminal TypeScrew Terminals
Actuator TypeToggle
Rated Voltage (Ur)415 V, 12 V Minimum
Rated Operational Voltage415 V AC
Operational VoltageMaximum 436 V AC, Minimum 12 V AC
Voltage Protection Level ( Up)4 kV
Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage TypeAC
Rated Current (In)63 A
Rated Short-Circuit Capacity(230 / 400 V AC) 25 kA
Rated Conditional Short-Circuit Current (Inc)10 kA
Rated Frequency (f)50 / 60 Hz
Power Lossat Rated Operating Conditions per Pole 5.03 W
Number of Contacts NO4
Overvoltage CategoryIII
Housing MaterialInsulation Group I, RAL 7035
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree3
Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Width in Number of Modular Spacings4
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
Mounting Positionany
