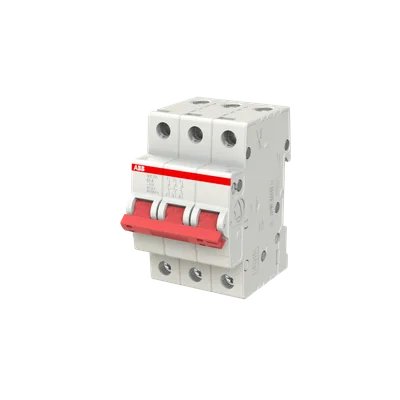

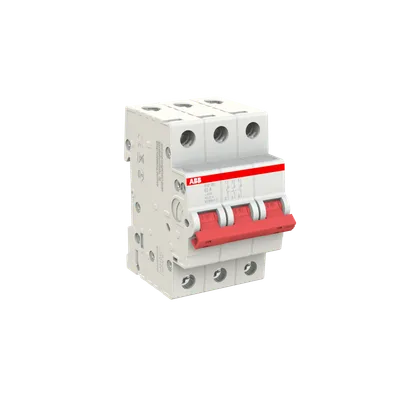

ABB 2CDD273111R0063

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CDD273111R0063

SHD203/63 - Switch Disconnector 3P, 63A

ABBMFR # 2CDD273111R0063SKU # YLSIFGJONZR1NFZ

Extended Product TypeSHD203/63

Electrical Endurance10000 AC cycle

Mechanical Endurance20000 cycle

Number of Poles3P

Tightening Torque2 N·m

Actuator TypeToggle

Share

Have questions?Chat on WhatsApp

About This Product

ABB 2CDD273111R0063 (SHD203/63 - Switch Disconnector 3P, 63A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDD273111R0063 — price, stock availability and technical specifications.

ABB 2CDD273111R0063

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSHD203/63

Electrical Endurance10000 AC cycle

Mechanical Endurance20000 cycle

Number of Poles3P

Tightening Torque2 N·m

Utilization CategorySwitching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)

Actuator TypeToggle

Screw Terminal TypeCable Clamp

Switch TypeOff

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Red, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableNo

Cover ColorGrey

Connecting CapacityFlexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²

Terminal TypeScrew Terminals

Rated Voltage (Ur)415 V, 12 V Minimum

Rated Operational Voltage415 V AC

Operational VoltageMaximum 436 V AC, Minimum 12 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)63 A

Rated Conditional Short-Circuit Current (Inc)10 kA

Rated Frequency (f)50 / 60 Hz

Power Lossat Rated Operating Conditions per Pole 5.03 W

Number of Contacts NO3

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Degree of ProtectionIP20, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings3.0

Built-In Depth (t2)69 mm

Mounting Positionany

Documents & CAD

Documents 15

CertificateEcosolution Product Profile SHD200 CNIIBPDF·238 KB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

Instruction ManualEnd of Life instruction - Switch Disconnector SHD200PDF·466 KB·English

CertificateEPD ABB SHD200PDF·279 KB·English

CertificateCertificate CQC acc. to GB/T14048 Made in ChinaPDF·1.0 MB·English

CertificateCE Declaration SHD200PDF·102 KB·English

CertificateCertificate EAC Made in BulgariaPDF·1.7 MB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateCertificate CQC acc. to GB/T14048 Made in BulgariaPDF·639 KB·English

CertificateCertificate KEMA acc. to 60947 Made in BulgariaPDF·207 KB·English

CertificateCertificate CQC acc. to GB14048 Made in ChinaPDF·1.6 MB·English

CertificateCertificate CCA acc. to 60947 Made in Bulgaria - Update On GoingPDF·74 KB·English

CertificateCertificate CB acc. to 60947 Made in Bulgaria - Update On GoingPDF·96 KB·English

CertificateCertificate VDE acc. to 60947 Made in BulgariaPDF·271 KB·English

DatasheetSwitch disconnector SHD200PDF·1.0 MB·English
