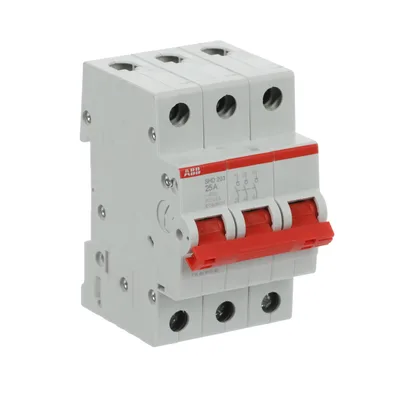

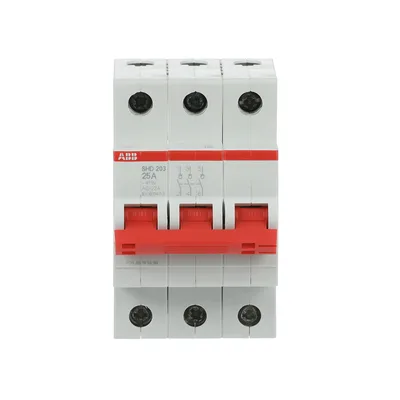

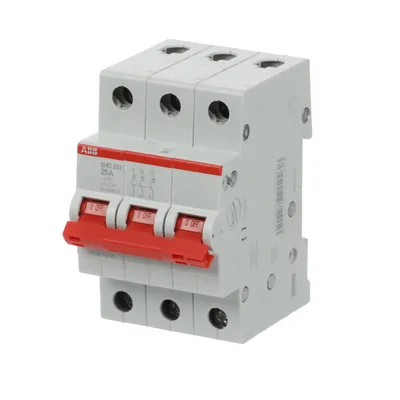

SHD203/25 - Switch Disconnector 3P, 25A

ABBMFR # 2CDD273111R0025SKU # YLSZBYGFDETTSD

Extended Product TypeSHD203/25

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Poles3P

Tightening Torque2 N·m

Actuator TypeToggle

Share

Have questions?Chat on WhatsApp

About This Product

ABB 2CDD273111R0025 (SHD203/25 - Switch Disconnector 3P, 25A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDD273111R0025 — price, stock availability and technical specifications.

ABB 2CDD273111R0025

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSHD203/25

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Poles3P

Tightening Torque2 N·m

Utilization CategorySwitching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)

Actuator TypeToggle

Screw Terminal TypeCable Clamp

Switch TypeOff

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Red, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableNo

Cover ColorGrey

Connecting CapacityFlexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²

Terminal TypeScrew Terminals

Rated Voltage (Ur)415 V, 12 V Minimum

Rated Operational Voltage415 V AC

Operational VoltageMaximum 436 V AC, Minimum 12 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV

Input Voltage TypeAC

Rated Current (In)25 A

Rated Conditional Short-Circuit Current (Inc)10 kA

Rated Frequency (f)50 / 60 Hz

Power Lossat Rated Operating Conditions per Pole 1.58 W

Number of Contacts NO3

Overvoltage CategoryIII

Housing MaterialInsulation Group I, RAL 7035

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Degree of ProtectionIP20, Enclosure with Cover IP40

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings3.0

Built-In Depth (t2)69 mm

Mounting Positionany
