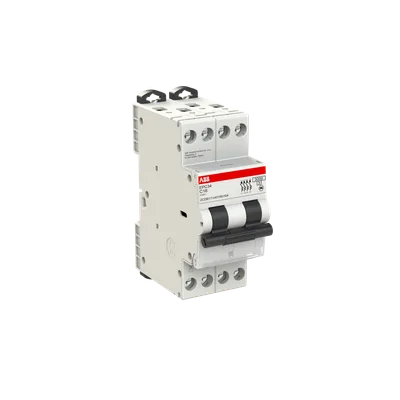

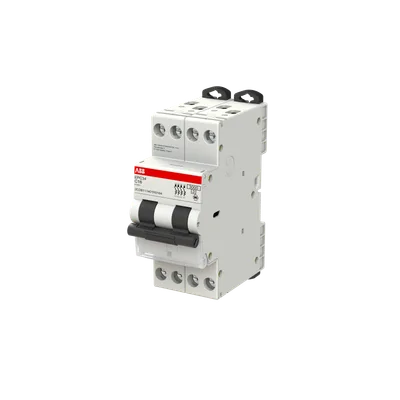

ABB 2CDB111401R0164
MCB EPC30 3kA 4P C 16A - Miniature Circuit Breaker
Extended Product TypeEPC34C16
Primary Rated Impulse Withstand Voltage4 kV
Energy Limiting Class3
Number of Protected Poles4
Number of Poles4P
Accessories AvailableYes
About This Product
ABB 2CDB111401R0164 (MCB EPC30 3kA 4P C 16A - Miniature Circuit Breaker) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CDB111401R0164 — price, stock availability and technical specifications.
ABB 2CDB111401R0164
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeEPC34C16
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 52 %
Sustainable Material Content in Product (wt. %)0 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Primary Rated Impulse Withstand Voltage4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 3 kA, (230 V) 3 kA, (400 V) 3 kA
Energy Limiting Class3
Number of Protected Poles4
Number of Poles4P
Accessories AvailableYes
Connecting CapacityFlexible 0.75 ... 10 mm², Rigid 0.75 ... 16 mm²
Rated Operational Voltage400 V AC, acc. to IEC 60898-1 415 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Input Voltage TypeAC
Rated Current (In)16 A
Rated Short-Circuit Capacity(415 V AC) 3 kA, (230 V) 3 kA, (400 V) 3 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 5 kA, (400 V) 5 kA
Rated Frequency (f)50 / 60 Hz
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 ... +55 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings4.0
Built-In Depth (t2)70 mm
StandardsIEC/EN 60898-1, IEC/EN 60947-2
Certification AgencyEN, IEC
Standardization BodyEN, IEC
Documents & CAD
Documents 1
