How can I get a price quote for ABB 2CDA383799R0981?

You can request a fast quote for ABB 2CDA383799R0981 from Yılsa Engineering. Reference part number YLS8BDOWZQEEFEZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CDA383799R0981 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CDA383799R0981 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CDA383799R0981?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

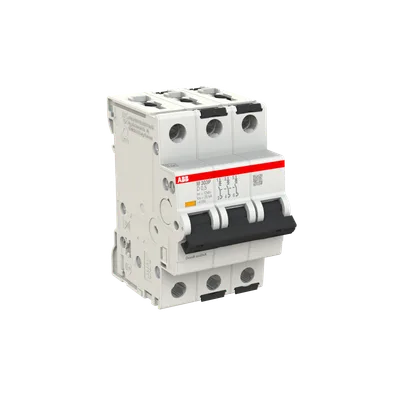

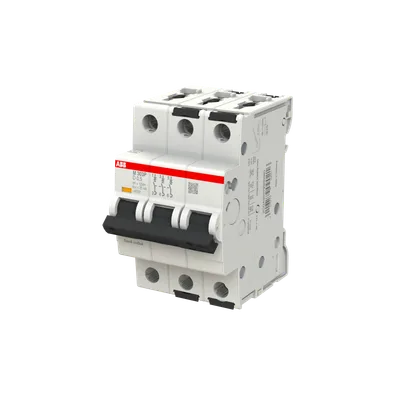

ABB 2CDA383799R0981

The MCBs M300P series assures protection in industrial installations against short circuits. This product is manufactured according to IEC standard, for the markets where it is required.

ABBMFR # 2CDA383799R0981SKU # YLS8BDOWZQEEFEZ

Extended Product TypeM303P-D0.5

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Have questions?Chat on WhatsApp

About This Product

The MCBs M300P series assures protection in industrial installations against short circuits. This product is manufactured according to IEC standard, for the markets where it is required.

ABB 2CDA383799R0981

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeM303P-D0.5

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(125 V DC) 25 kA, (415 V AC) 100 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(440 V AC) 12.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Electrical Endurance20000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P

Tightening Torque2.8 N·m

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length14 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 415 V AC

Operational VoltageMaximum (Incl. Tolerance) 254 V AC, Maximum 254 V AC, Minimum 12 V AC, Minimum 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)6 kV

Input Voltage TypeAC/DC

Rated Current (In)0.5 A

Rated Frequency (f)50 / 60 Hz, DC

Overvoltage CategoryIV

Housing MaterialInsulation Group I, RAL 7035

Connecting Capacity UL/CSABusbar 18-8 AWG, Conductor 18-4 AWG

Tightening Torque UL/CSA18 in·lb

Ambient Air TemperatureOperation -40 ... +70 °C, Storage -50 ... +70 °C

Degree of ProtectionIP20

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g / 3 shocks / 18 ms

Width in Number of Modular Spacings3.0

Pole Net Weight0.372 kg

Built-In Depth (t2)69 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsIEC/EN 60947-2

Certification AgencyEN, IEC

Documents & CAD

Documents 6

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

CertificateEPD S300PPDF·193 KB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

CertificateIHM declaration MCBs and AccessoriesPDF·278 KB·English

Technical DrawingDimensional Drawing M300PPDF·435 KB·English

DatasheetM300P Data sheet - PDFPDF·732 KB·English

CAD Files 8

3D Model

2D Drawing
