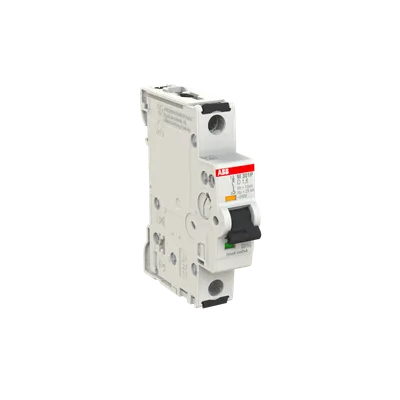

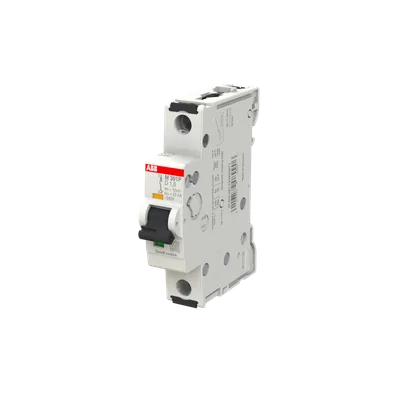

ABB 2CDA381799R0971

The MCBs M300P series assures protection in industrial installations against short circuits. This product is manufactured according to IEC standard, for the markets where it is required.

ABBMFR # 2CDA381799R0971SKU # YLS87MZ2LEXJU

Extended Product TypeM301P-D1.6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Electrical Endurance10000 AC cycle

Mechanical Endurance20000 cycle

Have questions?Chat on WhatsApp

About This Product

The MCBs M300P series assures protection in industrial installations against short circuits. This product is manufactured according to IEC standard, for the markets where it is required.

ABB 2CDA381799R0971

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeM301P-D1.6

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(240 V AC) 100 kA, (72 V DC) 25 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 12.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Electrical Endurance10000 AC cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P

Tightening Torque2.8 N·m

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Actuator MaterialInsulation Group II, Black, Sealable

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityBusbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length14 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 240 V AC

Operational VoltageMaximum (Incl. Tolerance) 254 V AC, Maximum 254 V AC, Minimum 12 V AC, Minimum 12 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)6 kV

Input Voltage TypeAC/DC

Rated Current (In)1.6 A

Rated Frequency (f)50 / 60 Hz, DC

Overvoltage CategoryIV

Housing MaterialInsulation Group I, RAL 7035

Connecting Capacity UL/CSABusbar 18-8 AWG, Conductor 18-4 AWG

Tightening Torque UL/CSA18 in·lb

Ambient Air TemperatureOperation -40 ... +70 °C, Storage -50 ... +70 °C

Degree of ProtectionIP20

Pollution Degree3

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g / 3 shocks / 18 ms

Width in Number of Modular Spacings1.0

Pole Net Weight0.124 kg

Built-In Depth (t2)69 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Positionany

StandardsIEC/EN 60947-2

Certification AgencyEN, IEC

Documents & CAD

Documents 6

CertificateRare Earth Elements (REE) Manufacturer’s DeclarationPDF·359 KB·English

CertificateEPD S300PPDF·193 KB·English

CertificateProduct Information TCSA 6(h)PDF·362 KB·English

CertificateIHM declaration MCBs and AccessoriesPDF·278 KB·English

Technical DrawingDimensional Drawing M300PPDF·435 KB·English

DatasheetM300P Data sheet - PDFPDF·732 KB·English

CAD Files 8

3D Model

2D Drawing
