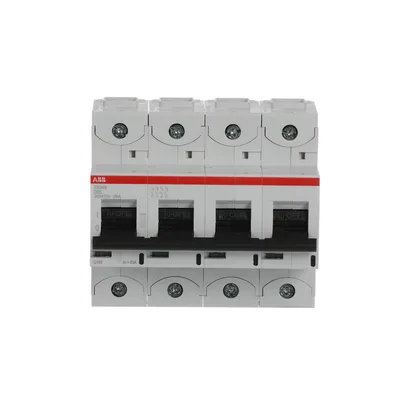

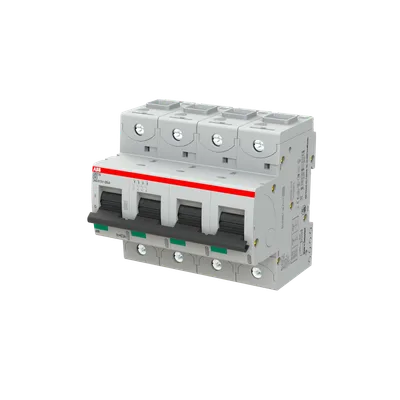

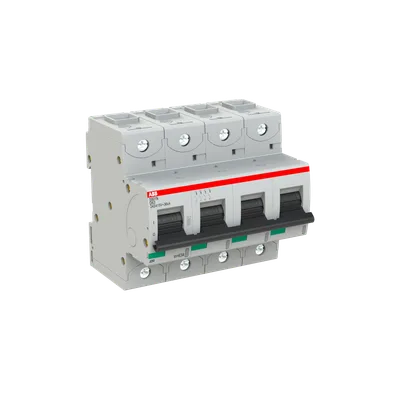

ABB 2CCS894001R0631

The S804N-D63 is a 4-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804N-D63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804N-D63 more comfortable. Due to the fast arc extinction of S804N-D63 your application will be secured.

ABBMFR # 2CCS894001R0631SKU # YLSF68TUEYWEOE

Extended Product TypeS804N-D63

Type of Residual CurrentStandard Version

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Electrical Endurance6000 cycle

Mechanical Endurance4000 cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CCS894001R0631

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS804N-D63

Type of Residual CurrentStandard Version

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 36 kA, (440 V AC) 20 kA, (500 V AC) 10 kA, (690 V AC) 4.5 kA, (500 V DC) 20 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(415 V AC) 30 kA, (440 V AC) 15 kA, (500 V AC) 8 kA, (690 V AC) 3 kA, (500 V DC) 20 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Electrical Endurance6000 cycle

Mechanical Endurance4000 cycle

Number of Protected Poles4

Number of Poles4P

Tightening Torque3.5 N·m, 31 in·lb

Release TypeD

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 690 V AC

Operational VoltageMaximum 230/400 V AC, Minimum 12 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeAC/DC

Rated Current (In)63 A

Rated Short-Circuit Capacity(400 V AC) 20 kA

Frequency (f)50 ... 60 Hz

Rated Frequency (f)50/60 Hz

Power LossTotal 25.6 W, at Rated Operating Conditions per Pole 6.4 W

Overvoltage CategoryIV

Housing MaterialInsulation group I, RAL 7035

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperatureacc. to IEC60947-2 30 °C, acc. to EN60898-1 30 °C

Degree of ProtectionIP20

Pollution Degree3

Resistance to Vibrations1 mm 2 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz

Resistance to Shock acc. to IEC 60068-2-275 g, 30 ms

Width in Number of Modular Spacings6

Built-In Depth (t2)82.5 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting PositionAny

StandardsIEC/EN 60947-2, IEC/EN 60898-1

Documents & CAD

Documents 13

CertificateEPD S800 Global market - ABBG-00659-V01.02-ENPDF·19.5 MB·English

CertificateEPD S800 EU market - ABBG-00658-V01.02-ENPDF·20.0 MB·English

CertificateIHM confirmation S800 and S800 accessoriesPDF·587 KB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800N, S800C-K,Made in SwitzerlandPDF·3.1 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S800N, S800C-K,Made in SwitzerlandPDF·1.3 MB·English

CertificateKC certificate for S800S and S800NPDF·33.0 MB·English

CertificateESTI Certificate S800NPDF·413 KB·English

Instruction ManualInstruction Manual S800 rangePDF·3.2 MB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateCertificate RRR Made in GermanyPDF·523 KB·English

CertificateVDE certificate for S800S, S800N, S800CPDF·620 KB·English

CertificateCCC S800NPDF·1.7 MB·English

CertificateCB S800NPDF·117 KB·English

CAD Files 2

2D Drawing
