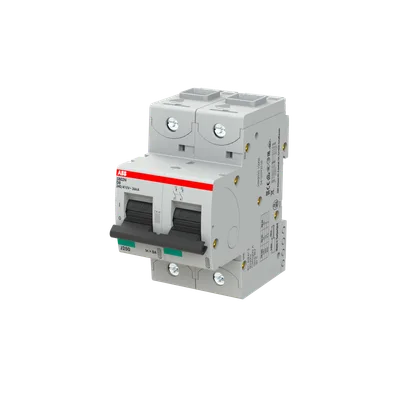

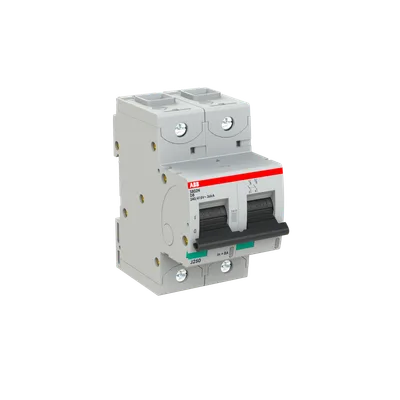

ABB 2CCS892001R0081
The S802N-D8 is a 2-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 8 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802N-D8 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802N-D8 more comfortable. Due to the fast arc extinction of S802N-D8 your application will be secured.
Extended Product TypeS802N-D8
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles2
About This Product
The S802N-D8 is a 2-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 8 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802N-D8 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802N-D8 more comfortable. Due to the fast arc extinction of S802N-D8 your application will be secured.
ABB 2CCS892001R0081
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS802N-D8
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 36 kA, (440 V AC) 20 kA, (500 V AC) 10 kA, (690 V AC) 4.5 kA, (250 V DC) 20 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(415 V AC) 30 kA, (440 V AC) 15 kA, (500 V AC) 8 kA, (690 V AC) 3 kA, (250 V DC) 20 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles2
Number of Poles2P
Tightening Torque3.5 N·m, 31 in·lb
Release TypeD
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 690 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeAC/DC
Rated Current (In)8 A
Rated Short-Circuit Capacity(400 V AC) 20 kA
Frequency (f)50...60 Hz
Rated Frequency (f)50/60 Hz
Power LossTotal 3.4 W, at Rated Operating Conditions per Pole 1.7 W
Overvoltage CategoryIV
Housing MaterialInsulation group I, RAL 7035
Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C
Reference Ambient Air Temperatureacc. to IEC60947-2 30 °C, acc. to EN60898-1 30 °C
Degree of ProtectionIP20
Pollution Degree3
Resistance to Vibrations1 mm 2 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz
Resistance to Shock acc. to IEC 60068-2-275 g, 30 ms
Width in Number of Modular Spacings3
Built-In Depth (t2)82.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
StandardsIEC/EN 60947-2, IEC/EN 60898-1
