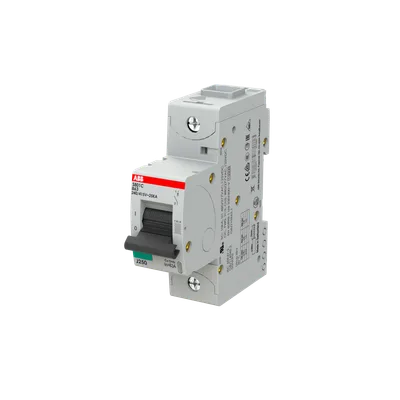

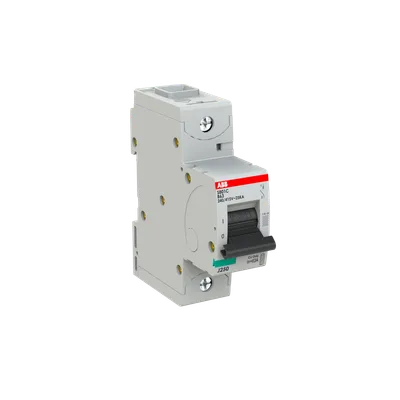

ABB 2CCS881001R0635
The S801C-B63 is a 1-pole High Performance Circuit breaker with B-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801C-B63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801C-B63 more comfortable. Due to the fast arc extinction of S801C-B63 your application will be secured.
Extended Product TypeS801C-B63
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Electrical Endurance6000 cycle
Mechanical Endurance4000 cycle
Number of Protected Poles1
About This Product
The S801C-B63 is a 1-pole High Performance Circuit breaker with B-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801C-B63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801C-B63 more comfortable. Due to the fast arc extinction of S801C-B63 your application will be secured.
ABB 2CCS881001R0635
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS801C-B63
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(240 V AC) 25 kA, (254 V AC) 15 kA, (125 V DC) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 25 kA, (254 V AC) 10 kA, (125 V DC) 10 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Electrical Endurance6000 cycle
Mechanical Endurance4000 cycle
Number of Protected Poles1
Number of Poles1P
Tightening Torque3.5 N·m, 31 in·lb
Release TypeB
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60898-1 230 V AC, acc. to IEC 60947-2 240 V AC
Operational VoltageMaximum 230/400 V AC, Minimum 12 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeAC/DC
Rated Current (In)63 A
Rated Short-Circuit Capacity(230 / 400 V AC) 15 kA
Frequency (f)50 / 60 Hz
Rated Frequency (f)50/60 Hz
Power LossTotal 6.4 W, at Rated Operating Conditions per Pole 6.4 W
Overvoltage CategoryIV
Housing MaterialInsulation group I, RAL 7035
Interrupting Rating acc. to UL1077(240 V AC) 20 kA, (347 V AC) 10 kA, (125 V DC) 10 kA
Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C
Reference Ambient Air Temperatureacc. to IEC60947-2 30 °C, acc. to EN60898-1 30 °C
Degree of ProtectionIP20
Pollution Degree3
Resistance to Vibrations1 mm 2 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz
Resistance to Shock acc. to IEC 60068-2-275 g, 30 ms
Width in Number of Modular Spacings1.5
Built-In Depth (t2)82.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
StandardsIEC/EN 60947-2, IEC/EN 60898-1, UL 1077
