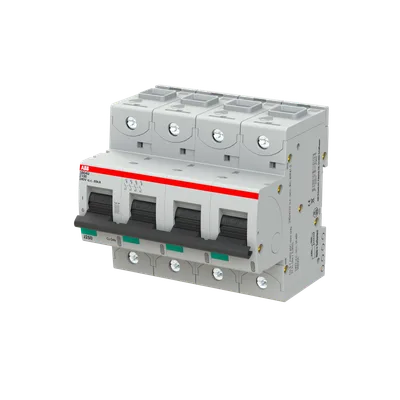

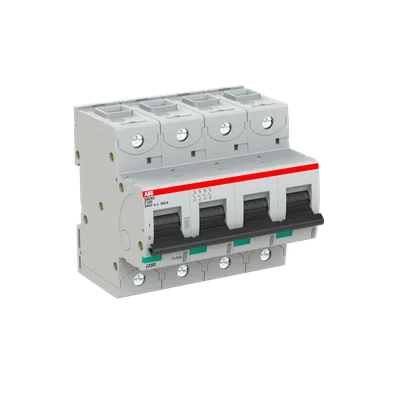

ABB 2CCS864017R0825
S804U-Z100 4 Pole Z Characteristic 100A 50kA 240/415VAC High Performance Circuit Breaker HPCB
Extended Product TypeS804U-Z100
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles4
Number of Poles4P
Release TypeZ
About This Product
S804U-Z100 4 Pole Z Characteristic 100A 50kA 240/415VAC High Performance Circuit Breaker HPCB
ABB 2CCS864017R0825
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS804U-Z100
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(415 V AC) 40 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles4
Number of Poles4P
Release TypeZ
Actuator MarkingI / O
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²
Short-Circuit Current Rating (SCCR)(240 V AC) 50 kA
Rated Operational Voltageacc. to IEC 60947-2 415 V AC, UL489 240 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeAC
Rated Current (In)100 A
Frequency (f)50/60 Hz
Rated Frequency (f)50/60 Hz
Power LossTotal 8.3 W, at Rated Operating Conditions per Pole 2075 W
Overvoltage CategoryIII
Interrupting Rating acc. to UL489(240 V AC) 50 kA
Ambient Air TemperatureOperation -25 ... +60 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings6
Built-In Depth (t2)82.5 mm
StandardsUL 489
