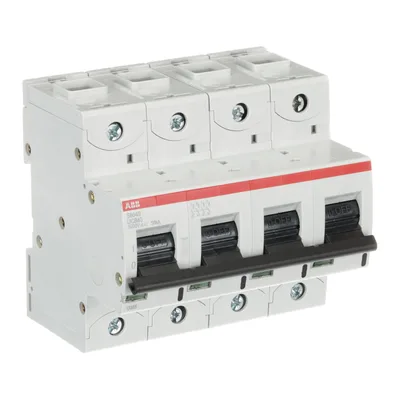

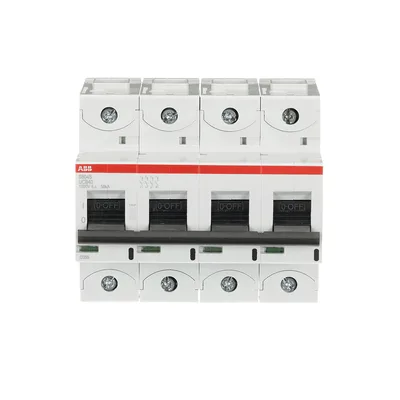

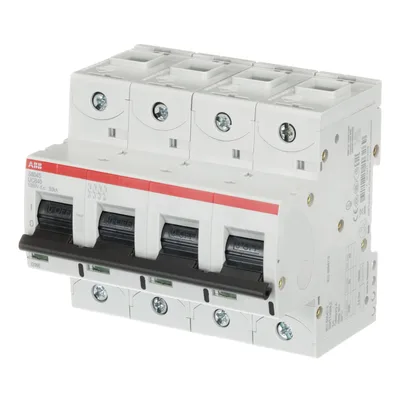

ABB 2CCS864001R1405

S804S-UCB40 High Performance Miniature Circuit Breaker 4 Poles B Characteristic 40A 50kA 250VDC

ABBMFR # 2CCS864001R1405SKU # YLSNPXKWATEFOGD

Extended Product TypeS804S-UCB40

Type of Residual CurrentStandard Version

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles4

Number of Poles4P

Share

Have questions?Chat on WhatsApp

About This Product

S804S-UCB40 High Performance Miniature Circuit Breaker 4 Poles B Characteristic 40A 50kA 250VDC

ABB 2CCS864001R1405

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS804S-UCB40

Type of Residual CurrentStandard Version

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V DC) 50 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V DC) 50 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles4

Number of Poles4P

Release TypeB

Actuator MarkingI / O

Options ProvidedUniversal current

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 1000 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeDC

Rated Current (In)40 A

Frequency (f)0...0 Hz

Rated Frequency (f)0 Hz

Power LossTotal 14.8 W, at Rated Operating Conditions per Pole 3.7 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Degree of ProtectionIP20

Pollution Degree2

Width in Number of Modular Spacings6

Built-In Depth (t2)82.5 mm

StandardsIEC/EN 60947-2
