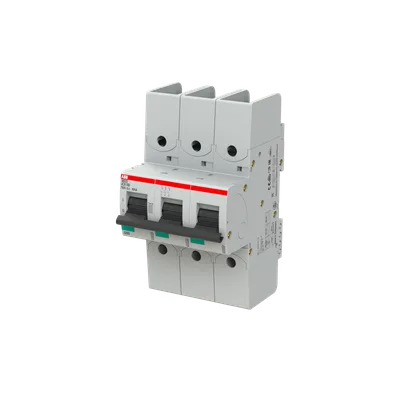

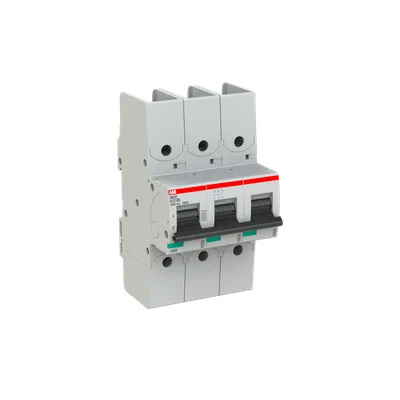

S803S-UCK100-R 3 Poles UCB Characteristic 100A 50kA 750VDC Ringlug

ABBMFR # 2CCS863002R1637SKU # YLSKUK2K1NUQOHI

Extended Product TypeS803S-UCK100-R

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles3

Number of Poles3P

Release TypeK

Share

Have questions?Chat on WhatsApp

About This Product

S803S-UCK100-R 3 Poles UCB Characteristic 100A 50kA 750VDC Ringlug

ABB 2CCS863002R1637

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS803S-UCK100-R

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(750 V DC) 50 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(750 V DC) 50 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles3

Number of Poles3P

Release TypeK

Actuator MarkingI / O

Options ProvidedRinglug terminal

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 750 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeDC

Rated Current (In)100 A

Rated Conditional Short-Circuit Current (Inc)(230 V) 50 kA, (400 V) 50 kA

Frequency (f)0...0 Hz

Rated Frequency (f)0 Hz

Power LossTotal 24.9 W, at Rated Operating Conditions per Pole 8.3 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Degree of ProtectionIP20

Pollution Degree2

Width in Number of Modular Spacings4.5

Built-In Depth (t2)82.5 mm

StandardsIEC/EN 60947-2
