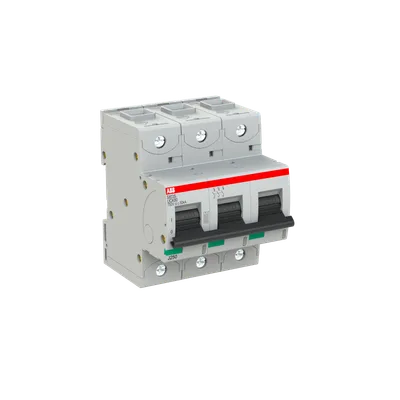

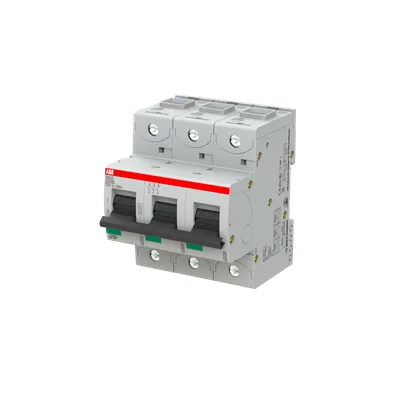

ABB 2CCS863001R1627
S803S-UCK80 High Performance Miniature Circuit Breaker 3 Poles K Characteristic 80A 50kA 250VDC
Extended Product TypeS803S-UCK80
Type of Residual CurrentStandard Version
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles3
Number of Poles3P
About This Product
S803S-UCK80 High Performance Miniature Circuit Breaker 3 Poles K Characteristic 80A 50kA 250VDC
ABB 2CCS863001R1627
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS803S-UCK80
Type of Residual CurrentStandard Version
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(750 V DC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(750 V DC) 50 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles3
Number of Poles3P
Release TypeK
Actuator MarkingI / O
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60947-2 750 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeDC
Rated Current (In)80 A
Frequency (f)0...0 Hz
Rated Frequency (f)0 Hz
Power LossTotal 19.2 W, at Rated Operating Conditions per Pole 6.4 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings4.5
Built-In Depth (t2)82.5 mm
StandardsIEC/EN 60947-2
