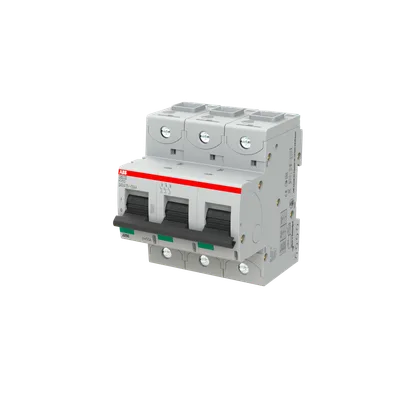

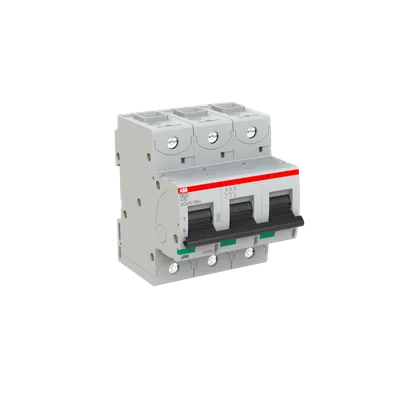

S803S-KM50 High Performance Miniature Circuit Breaker 3 Poles KM Characteristic 50A 50kA 230AETBC400VAC

ABBMFR # 2CCS863001R0576SKU # YLSN5YJYWD3CRW0

Extended Product TypeS803S-KM50

Type of Residual CurrentStandard Version

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles3

Number of Poles3P

Share

Have questions?Chat on WhatsApp

About This Product

S803S-KM50 High Performance Miniature Circuit Breaker 3 Poles KM Characteristic 50A 50kA 230AETBC400VAC

ABB 2CCS863001R0576

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS803S-KM50

Type of Residual CurrentStandard Version

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 50 kA, (254 V AC) 30 kA, (690 V AC) 6 kA, (375 V DC) 30 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(375 V DC) 30 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles3

Number of Poles3P

Release TypeKM

Actuator MarkingI / O

Options ProvidedMagnetic only protection

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 690 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeAC/DC

Rated Current (In)50 A

Frequency (f)50 ... 60 Hz

Rated Frequency (f)50/60 Hz

Power LossTotal 12.9 W, at Rated Operating Conditions per Pole 4.3 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Degree of ProtectionIP20

Pollution Degree2

Width in Number of Modular Spacings4.5

Built-In Depth (t2)82.5 mm

StandardsIEC/EN 60947-2
