ABB 2CCS862002R1505

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCS862002R1505

S802S-UCB50-R 2 Poles UCB Characteristic 50A 50kA 500VDC Ringlug

ABBMFR # 2CCS862002R1505SKU # YLSOXCYTGFZ94RH

Extended Product TypeS802S-UCB50-R

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Release TypeB

Share

Have questions?Chat on WhatsApp

About This Product

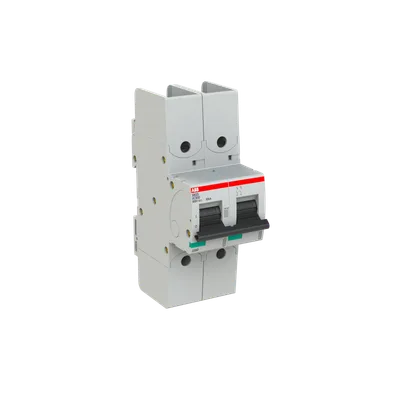

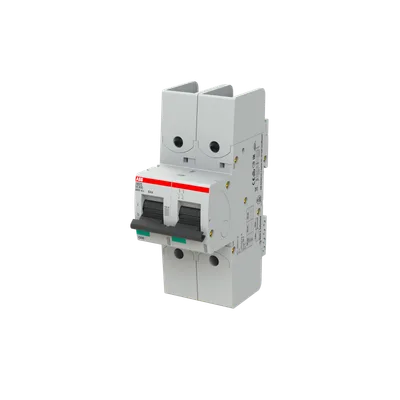

S802S-UCB50-R 2 Poles UCB Characteristic 50A 50kA 500VDC Ringlug

ABB 2CCS862002R1505

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS802S-UCB50-R

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(500 V DC) 50 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(500 V DC) 50 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Release TypeB

Actuator MarkingI / O

Options ProvidedRinglug terminal

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 500 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeDC

Rated Current (In)50 A

Frequency (f)0...0 Hz

Rated Frequency (f)0 Hz

Power LossTotal 8.6 W, at Rated Operating Conditions per Pole 4.3 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Degree of ProtectionIP20

Pollution Degree2

Width in Number of Modular Spacings3

Built-In Depth (t2)82.5 mm

StandardsIEC/EN 60947-2
