ABB 2CCS862001R1105

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCS862001R1105

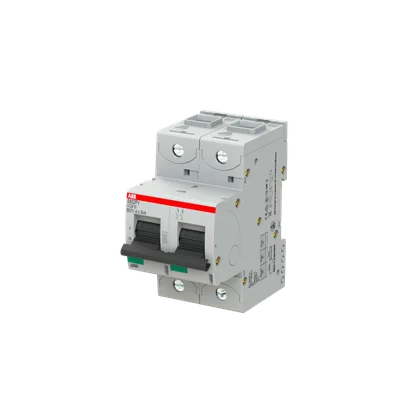

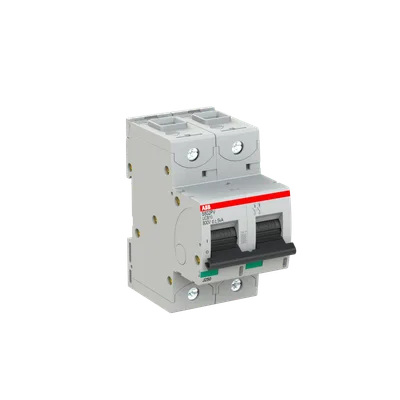

S802S-UCB10 High Performance Miniature Circuit Breaker 2 Poles B Characteristic 10A 50kA 250VDC

ABBMFR # 2CCS862001R1105SKU # YLSYCUDQUZ66BL1

Extended Product TypeS802S-UCB10

Type of Residual CurrentStandard Version

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Share

Have questions?Chat on WhatsApp

About This Product

S802S-UCB10 High Performance Miniature Circuit Breaker 2 Poles B Characteristic 10A 50kA 250VDC

ABB 2CCS862001R1105

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS802S-UCB10

Type of Residual CurrentStandard Version

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(500 V DC) 50 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(500 V DC) 50 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Release TypeB

Actuator MarkingI / O

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60947-2 500 V DC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeDC

Rated Current (In)10 A

Frequency (f)50...60 Hz

Rated Frequency (f)0 Hz

Power LossTotal 3 W, at Rated Operating Conditions per Pole 1.5 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Degree of ProtectionIP20

Pollution Degree2

Width in Number of Modular Spacings3

Built-In Depth (t2)82.5 mm

StandardsIEC/EN 60947-2

Documents & CAD

Documents 23

CertificateEPD S800 Global market - ABBG-00659-V01.02-ENPDF·19.5 MB·English

CertificateEPD S800 EU market - ABBG-00658-V01.02-ENPDF·20.0 MB·English

CertificateEU declaration addendum S800 S-UC, HV, PV-SP - list of CodesPDF·238 KB·English

CertificateIHM confirmation S800 and S800 accessoriesPDF·587 KB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800S-UC/S804-UCZ,Made in SwitzerlandPDF·3.0 MB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800S,GB/T 14048.2-2020,Made in SwitzerlandPDF·3.3 MB·English

CertificateCCC approval - S800SPDF·2.3 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S800S-UC/S804-UCZ,Made in SwitzerlandPDF·1.5 MB·English

CertificateCQC Certificate,Moulded Case Circuit-breaker,S800S,GB/T 14048.2-2020,Made in SwitzerlandPDF·3.6 MB·English

CertificateUL_1077_S800S_S800CPDF·315 KB·English

CertificateKC certificate for S800S and S800NPDF·33.0 MB·English

CertificateCB for S800SPDF·467 KB·English

Instruction ManualInstruction Manual S800 rangePDF·3.2 MB·English

CertificateDNV-GL for S800S, S800P, S800U-UCZ & AccessoriesPDF·195 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateCertificate RRR Made in GermanyPDF·523 KB·English

DatasheetS800S - Technical informationPDF·1.8 MB·English

CertificateESTI Certificate S800S-UCPDF·842 KB·English

CertificateCB for S800S-UCPDF·100 KB·English

CertificateVDE certificate for S800S-UCB, S800S-UCKPDF·94 KB·English

CertificateVDE certificate for S800S, S800N, S800CPDF·620 KB·English

CertificateRINA Approval - S800SPDF·1.1 MB·English

CertificateLoyds RegisterPDF·688 KB·English

CAD Files 3

2D Drawing
