ABB 2CCS862001R0165

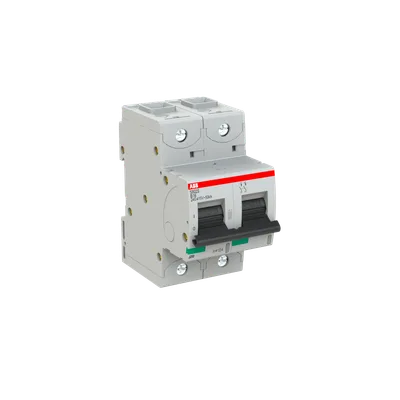

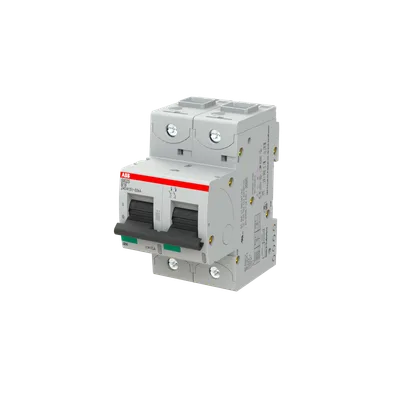

The S802S-B16 is a 2-pole High Performance Circuit breaker with B-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-B16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-B16 more comfortable. Due to the fast arc extinction of S802S-B16 your application will be secured.

ABBMFR # 2CCS862001R0165SKU # YLSVOIGK9TEQ5CW

Extended Product TypeS802S-B16

Type of Residual CurrentStandard Version

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance10000 cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CCS862001R0165

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS802S-B16

Type of Residual CurrentStandard Version

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 50 kA, (440 V AC) 30 kA, (500 V AC) 15 kA, (690 V AC) 6 kA, (250 V DC) 30 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(415 V AC) 40 kA, (440 V AC) 22.5 kA, (500 V AC) 11 kA, (690 V AC) 4 kA, (250 V DC) 30 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance10000 cycle

Number of Protected Poles2

Number of Poles2P

Tightening Torque3.5 N·m, 31 in·lb

Release TypeB

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 0 … 50 mm², Rigid 0 … 70 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 690 V AC

Operational VoltageMaximum 230/400 V AC, Minimum 12 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)8 kV

Input Voltage TypeAC/DC

Rated Current (In)16 A

Rated Short-Circuit Capacity(400 V AC) 25 kA

Frequency (f)50 ... 60 Hz

Rated Frequency (f)50/60 Hz

Power LossTotal 6.2 W, at Rated Operating Conditions per Pole 3.1 W

Overvoltage CategoryIV

Housing MaterialInsulation group I, RAL 7035

Interrupting Rating acc. to UL1077(480Y / 277 V AC) 14 kA, (600Y / 347 V AC) 6 kA

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperatureacc. to IEC60947-2 30 °C, acc. to EN60898-1 30 °C

Degree of ProtectionIP20

Pollution Degree3

Resistance to Vibrations1 mm 2 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz

Width in Number of Modular Spacings3

Built-In Depth (t2)82.5 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting PositionAny

StandardsIEC/EN 60947-2, IEC/EN 60898-1, UL 1077
