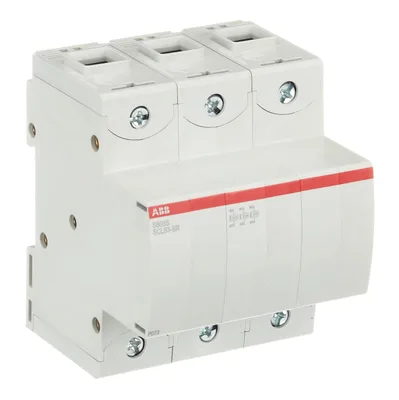

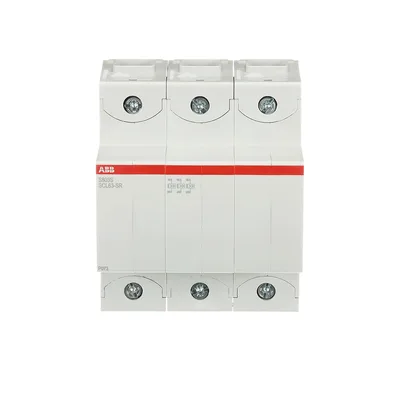

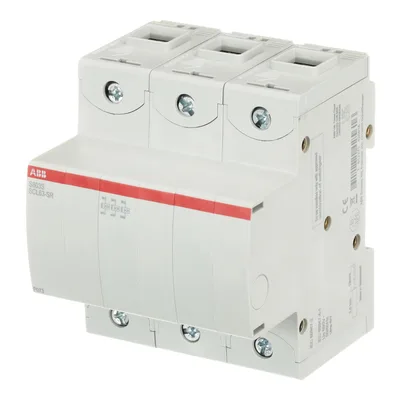

ABB 2CCS803901R0599

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCS803901R0599

S803S-SCL63-SR Self-resetting short-circuit current limiter 63A 3-pole tested acc. to IEC 60947-2

ABBMFR # 2CCS803901R0599SKU # YLSCM174PKWC91W
Extended Product TypeS803S-SCL63-SR
Suitable ForS800P, S800S, S800N, S800C, S800B
Rated Operational Current (Ie)63 A
Apparent Power OutputSecondary 43470 V·A
Number of Poles3P
Rated Operational VoltageAuxiliary Circuit 400 / 690 V
Share
Have questions?Chat on WhatsApp

About This Product

S803S-SCL63-SR Self-resetting short-circuit current limiter 63A 3-pole tested acc. to IEC 60947-2

ABB 2CCS803901R0599

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeS803S-SCL63-SR
Suitable ForS800P, S800S, S800N, S800C, S800B
Rated Operational Current (Ie)63 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(240 / 415 V AC) 100 kA, (254 / 440 V AC) 100 kA, (289 / 500 V AC) 65 kA, (400 / 690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 100 kA, (254 / 440 V AC) 100 kA, (289 / 500 V AC) 65 kA, (400 / 690 V AC) 50 kA
Apparent Power OutputSecondary 43470 V·A
Number of Poles3P
Rated Operational VoltageAuxiliary Circuit 400 / 690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)63 A
Rated Conditional Short-Circuit Current (Inc)50 kA
Rated Uninterrupted Current (Iu)63 A
Power LossTotal 7.8 W, at Rated Operating Conditions per Pole 2.6 W
Mounting TypeDIN-Rail
StandardsIEC 60947-2, IEC 60947-4-1

Documents & CAD

Documents 17

CertificateUL489 and CSA C22.2 certificate - S800-RHE-S, S800-RHE-H, S800-RHE-EM, S800-RDPDF·403 KB·English
CertificateUL1077 and CSA C22.2 certificate - S800-RSUPDF·447 KB·English
CertificateUL1077 and CSA C22.2 certificate - S800-AUX and S800-AUX/ALTPDF·448 KB·English
CertificateUL489 and CSA C22.2 certificate - S800-AUX and S800-AUX/ALTPDF·387 KB·English
CertificateUL 489 / CSA C22.2 No. 5 Certificate of Compliance - S800x-RSUPDF·418 KB·English
CertificateIHM confirmation S800 and S800 accessoriesPDF·587 KB·English
CertificateUL 489 _ S800-SORPDF·182 KB·English
CertificateCB_S803-SCLPDF·386 KB·English
CertificateCB_S800AUX_S800AUX/ALTPDF·142 KB·English
CertificateUL_508_S803W-SCL-SRPDF·187 KB·English
Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
CertificateESTI Certificate S800S-UCPDF·842 KB·English
Instruction ManualFunctional description S800-RSU-H / S800W-RSU Remote Switching Unit for S800PDF·278 KB·English
CertificateLoyds RegisterPDF·688 KB·English
Instruction ManualAssembly instruction S800-RSU-H Remote Switching Unit for S800PDF·422 KB·English
DatasheetS800-RSU/S500-RSU Remote Switching Units for High Performance MCBsPDF·2.1 MB·English
CertificateCCC China CertificatePDF·280 KB·English
