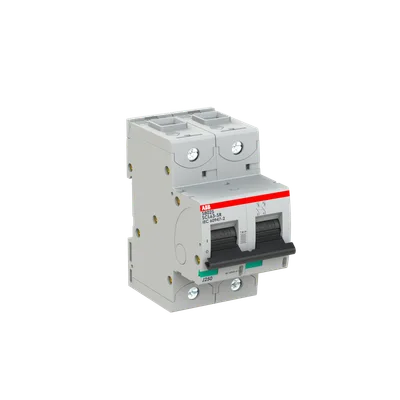

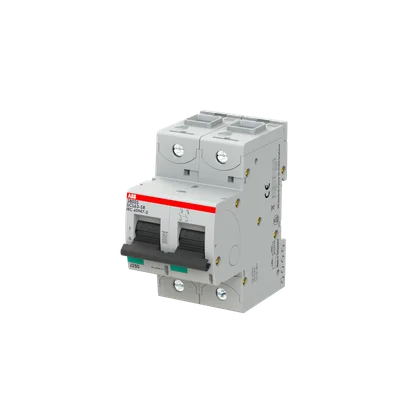

ABB 2CCS802901R0599

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCS802901R0599

S802S-SCL63-SR Self-resetting short-circuit current limiter 63A 2-pole tested acc. to IEC 60947-2

ABBMFR # 2CCS802901R0599SKU # YLSIY4YGXDA4GAS
Extended Product TypeS802S-SCL63-SR
Suitable ForS800P, S800S, S800N, S800C, S800B
Rated Operational Current (Ie)63 A
Apparent Power OutputSecondary 43470 V·A
Number of Poles2P
Rated Operational VoltageAuxiliary Circuit 400 / 690 V
Share
Have questions?Chat on WhatsApp

About This Product

S802S-SCL63-SR Self-resetting short-circuit current limiter 63A 2-pole tested acc. to IEC 60947-2

ABB 2CCS802901R0599

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeS802S-SCL63-SR
Suitable ForS800P, S800S, S800N, S800C, S800B
Rated Operational Current (Ie)63 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(240 / 415 V AC) 100 kA, (254 / 440 V AC) 100 kA, (289 / 500 V AC) 65 kA, (400 / 690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 100 kA, (254 / 440 V AC) 100 kA, (289 / 500 V AC) 65 kA, (400 / 690 V AC) 50 kA
Apparent Power OutputSecondary 43470 V·A
Number of Poles2P
Rated Operational VoltageAuxiliary Circuit 400 / 690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)63 A
Rated Conditional Short-Circuit Current (Inc)50 kA
Rated Uninterrupted Current (Iu)63 A
Power LossTotal 5.7 W, at Rated Operating Conditions per Pole 2.85 W
Mounting TypeDIN-Rail
StandardsIEC 60947-2, IEC 60947-4-1
