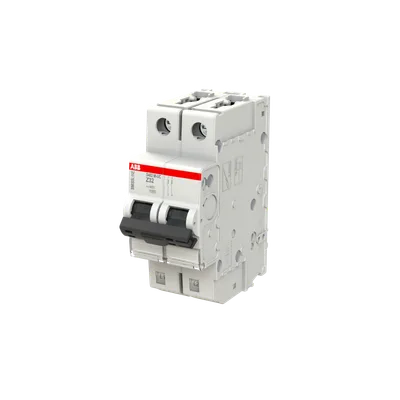

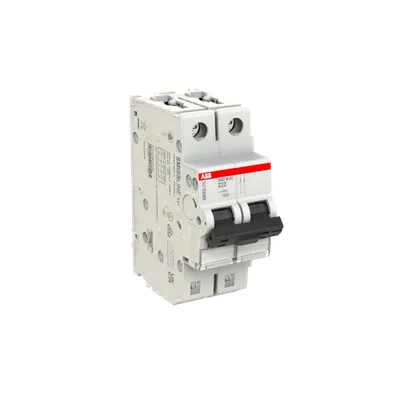

ABB 2CCS572001R1328

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCS572001R1328

The miniature circuit breaker S400M UC extends the established SMISSLINE TP product range with an MCB for DC and AC applications. The S400M UC impresses with its performance range. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application. MCBs of the product range S400M UC are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications. It is also the perfect fit for any application where costly downtime must be avoided.

ABBMFR # 2CCS572001R1328SKU # YLSLJB9GMLOPGN
Extended Product TypeS402M-UCZ32
Rated Operational Current (Ie)32 A
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Share
Have questions?Chat on WhatsApp

About This Product

The miniature circuit breaker S400M UC extends the established SMISSLINE TP product range with an MCB for DC and AC applications. The S400M UC impresses with its performance range. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application. MCBs of the product range S400M UC are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications. It is also the perfect fit for any application where costly downtime must be avoided.

ABB 2CCS572001R1328

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeS402M-UCZ32
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 18.12 %, Recycled Cardboard - 67.66 %, Chemically Recycled Polymer - 0 %
Rated Operational Current (Ie)32 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 15 kA, (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V DC) 20 kA, (440 V DC) 10 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)75 %
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles2
Number of Poles2P
Tightening Torque2.8 N·m
Trip ClassUC-Z
Release TypeZ
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60898-1 400 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC/DC
Rated Current (In)32 A
Rated Short-Circuit Capacity(230 V) 10 kA, (400 V) 10 kA
Frequency (f)50 ... 60 Hz
Rated Frequency (f)50 ... 60 Hz
Power LossTotal 7.6 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings2
Built-In Depth (t2)75 mm
Mounting PositionAny
StandardsIEC/EN 60947-2

Documents & CAD

Documents 12

CertificateS400 SMISSLINE TP End of Life InstructionPDF·334 KB·English
CertificateProduct Environmental Profile SMISSLINE MCB S400M_E_P B,C,D, KPDF·835 KB·English
CertificateESTI Declaration Approval - S400MPDF·1.1 MB·English
CertificateESTI Declaration Approval - S400EPDF·830 KB·English
CertificateCB Test Certificate - S400UCPDF·107 KB·English
CertificateCB Test Certificate - S400MPDF·97 KB·English
CertificateVDE Declaration Approval - S400UCPDF·332 KB·English
CertificateSMISSLINE TP S400P CCCPDF·2.4 MB·English
CertificateSMISSLINE TP S400P DNV/GLPDF·185 KB·English
CertificateSMISSLINE TP S400P VDEPDF·797 KB·English
Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
Instruction ManualSMISSLINE TP Mounting instruction S400PDF·475 KB·English

CAD Files 3
