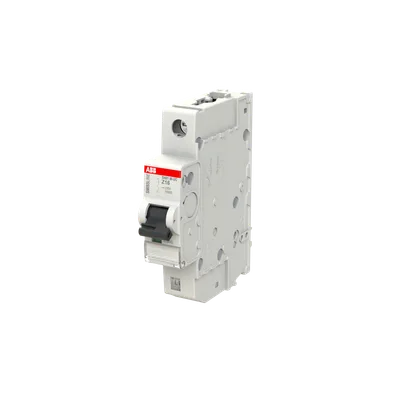

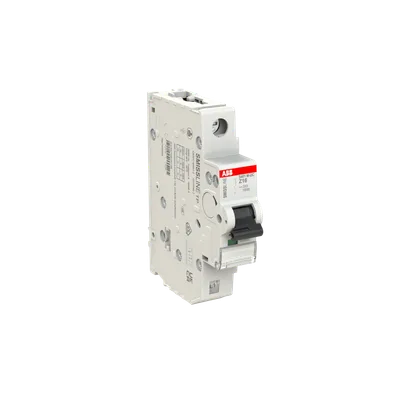

ABB 2CCS571001R1168
The miniature circuit breaker S400M UC extends the established SMISSLINE TP product range with an MCB for DC and AC applications. The S400M UC impresses with its performance range. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application. MCBs of the product range S400M UC are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications. It is also the perfect fit for any application where costly downtime must be avoided.
Extended Product TypeS401M-UCZ16
Rated Operational Current (Ie)16 A
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
About This Product
The miniature circuit breaker S400M UC extends the established SMISSLINE TP product range with an MCB for DC and AC applications. The S400M UC impresses with its performance range. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application. MCBs of the product range S400M UC are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications. It is also the perfect fit for any application where costly downtime must be avoided.
ABB 2CCS571001R1168
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS401M-UCZ16
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 18.12 %, Recycled Cardboard - 67.66 %, Chemically Recycled Polymer - 0 %
Rated Operational Current (Ie)16 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 25 kA, (400 V) 25 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V DC) 10 kA, (110 V DC) 10 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)50 %
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles1
Number of Poles1P
Tightening Torque2.8 N·m
Trip ClassUC-Z
Release TypeZ
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC/DC
Rated Current (In)16 A
Rated Short-Circuit Capacity(230 V) 10 kA, (400 V) 10 kA
Frequency (f)50 ... 60 Hz
Rated Frequency (f)50 ... 60 Hz
Power LossTotal 2.6 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings1
Built-In Depth (t2)75 mm
Mounting PositionAny
StandardsIEC/EN 60947-2
