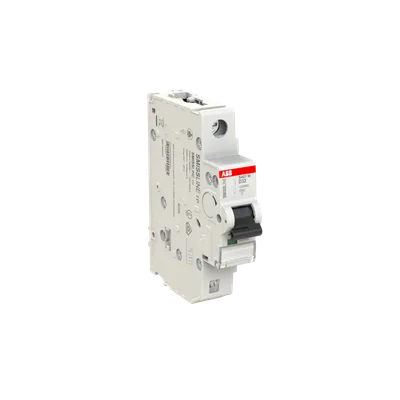

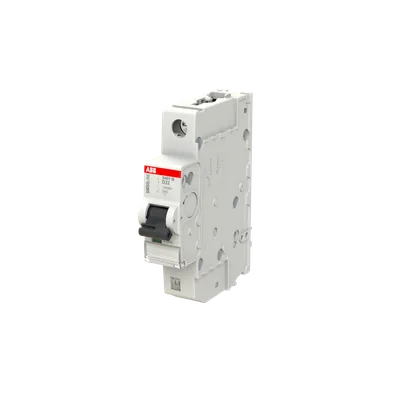

ABB 2CCS571001R0321

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCS571001R0321

SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.

ABBMFR # 2CCS571001R0321SKU # YLSGHZFNJDLGNBQ
Extended Product TypeS401M-D32
Rated Operational Current (Ie)32 A
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Share
Have questions?Chat on WhatsApp

About This Product

SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.

ABB 2CCS571001R0321

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeS401M-D32
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 18.12 %, Recycled Cardboard - 67.66 %, Chemically Recycled Polymer - 0 %
Rated Operational Current (Ie)32 A
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance10000 cycle
Number of Protected Poles1
Number of Poles1P
Tightening Torque2.8 N·m
Release TypeD
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60898-1 230 V
Operational VoltageMinimum 12 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)32 A
Rated Short-Circuit Capacity(230 V) 10 kA, (400 V) 10 kA
Frequency (f)50 ... 60 Hz
Rated Frequency (f)50 ... 60 Hz
Power LossTotal 3.1 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree3
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings1
Built-In Depth (t2)75 mm
Mounting PositionAny
StandardsIEC/EN 60898-1
