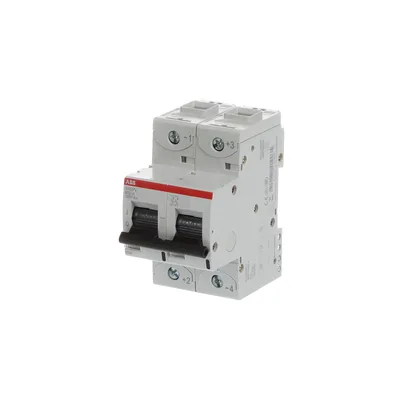

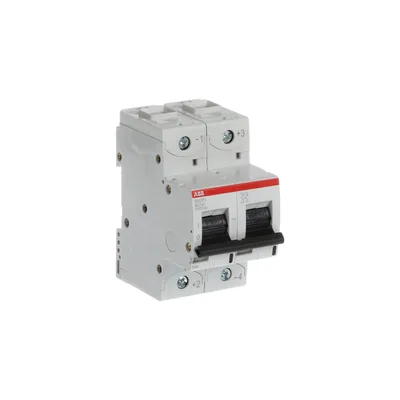

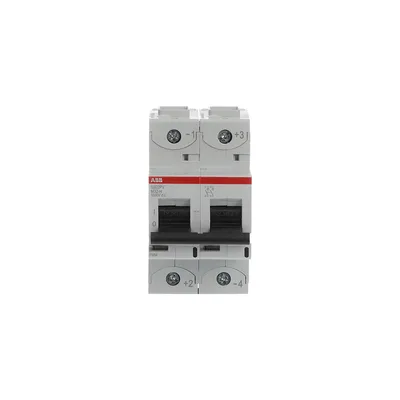

ABB 2CCP247204R0001
The S802PV-M32-H is a 2-pole polarized disconnector for photovoltaics. It can be used for currents up to 32A and has a rated operational voltage of 1000V DC by only 54mm width. The rated short-term withstand current Icw is 1.5kA. The S802PV-M32-H complies with IEC/EN 60947-3. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-M32-H more comfortable.
Extended Product TypeS802PV-M32-H
Contact Position IndicationON / OFF / TRIP
Number of Poles2P
Number of Switches8500
Tightening Torque3.5 N·m
Actuator MarkingI / O
About This Product
The S802PV-M32-H is a 2-pole polarized disconnector for photovoltaics. It can be used for currents up to 32A and has a rated operational voltage of 1000V DC by only 54mm width. The rated short-term withstand current Icw is 1.5kA. The S802PV-M32-H complies with IEC/EN 60947-3. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-M32-H more comfortable.
ABB 2CCP247204R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS802PV-M32-H
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V DC) 5 kA
Rated Short-Circuit Making Capacity (Icm)(1000 V DC) 0.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V DC) 5 kA
Contact Position IndicationON / OFF / TRIP
Number of Poles2P
Number of Switches8500
Tightening Torque3.5 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Connecting CapacityFlexible 0...50 mm², Rigid 0...70 mm²
Terminal TypeScrew Terminals
Rated Operational Voltage1000 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V DC
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Current (In)32 A
Rated Short-time Withstand Current Low Voltage (Icw)1.5 kA
Rated Uninterrupted Current (Iu)32 A
Power LossTotal 3.6 W, at Rated Operating Conditions per Pole 1.8 W
Overvoltage CategoryIV
Housing MaterialInsulation group I, RAL 7035
Control Element ColorBlack
Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 - 13.2 Hz, 0.7g with Load 100% x Ie 13.2 - 100 Hz
Resistance to Shock acc. to IEC 60068-2-275 g, 30 ms
Width in Number of Modular Spacings3
Built-In Depth (t2)82.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
StandardsIEC/EN 60947-3
