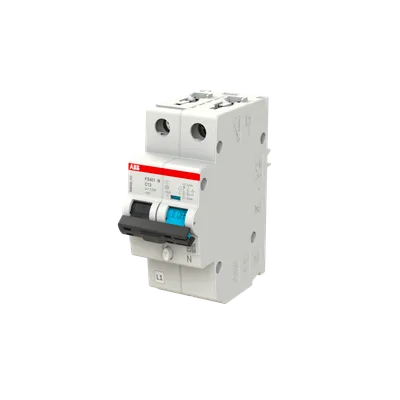

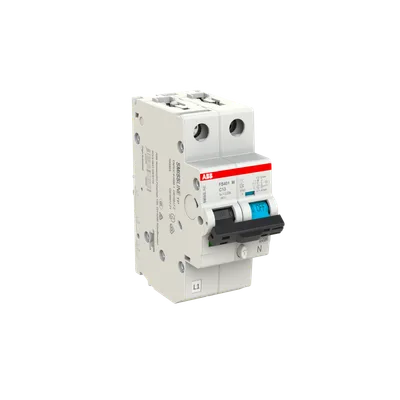

ABB 2CCG001678R0001
The FS401 series is a 1P+N pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System for the protection of end user circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and addition al protection against direct contacts.
Extended Product TypeFS401M-C13/0.03
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType A
Dielectric Test Voltage2500 kV
Rated Operational Current (Ie)13 A
Maximum Surge Current3 kA
About This Product
The FS401 series is a 1P+N pluggable Residual Current Circuit Breaker with overcurrent Protection for the SMISSLINE TP System for the protection of end user circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and addition al protection against direct contacts.
ABB 2CCG001678R0001
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeFS401M-C13/0.03
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 100 %
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType A
Dielectric Test Voltage2500 kV
Rated Operational Current (Ie)13 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)25 kA
Rated Residual Breaking Capacity (IΔm)10000 A
Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 15 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)10 kA
Maximum Surge Current3 kA
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsRight
Tightening Torque2.8 N·m
Actuator TypeToggle
Earthing Switch TypeUndelayed
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Actuator MaterialInsulation Group II, Black, Sealable
Accessories AvailableYes
Connecting CapacityStranded 0.75 ... 35 mm², Flexible 0.75 ... 25 mm²
Rated Cross-Section1 - Solid-Core 0.75 … 35 mm², 4 - Multi-Wired 0.75 … 10 mm²
Rated Operational Voltageacc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)13 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity10 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 2.3 W
Overvoltage CategoryIII
Housing MaterialInsulation Group I, RAL 7035
Ambient Air TemperatureOperation -25 … 60 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 2 … 13.2 Hz
Width in Number of Modular Spacings2
Built-In Depth (t2)78 mm
Mounting PositionAny
StandardsIEC 61009-1, EN 61009-1, EN 61009-2-1
