ABB 2CCG001296R0001

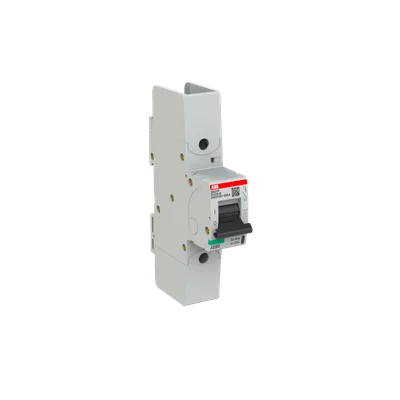

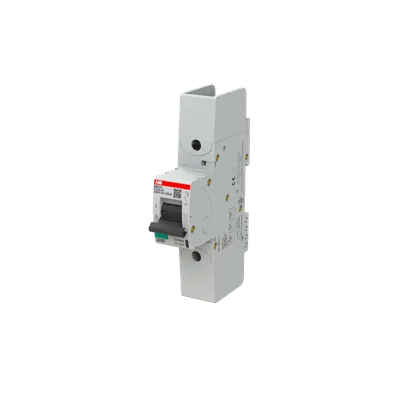

S801P-D125-R High Performance Circuit Breaker with ring tongue terminal. D Characteristic. 50kA, 125A, 1P

ABBMFR # 2CCG001296R0001SKU # YLS3TQKS1YNT0

Extended Product TypeS801P-D125-R

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Tightening Torque3.5 N·m

Have questions?Chat on WhatsApp

About This Product

S801P-D125-R High Performance Circuit Breaker with ring tongue terminal. D Characteristic. 50kA, 125A, 1P

ABB 2CCG001296R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS801P-D125-R

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(240 V AC) 50 kA, (254 V AC) 30 kA, (289 / 500 V AC) 10 kA, (400 V AC) 4.5 kA, (125 V DC) 30 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 40 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles1

Number of Poles1P

Tightening Torque3.5 N·m

Release TypeD

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 1...50 mm², Rigid 1...70 mm²

Wire Stripping Length19 mm

Rated Operational Voltageacc. to IEC 60898-1 230 V AC, acc. to IEC 60947-2 400 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)6 kV

Input Voltage TypeAC/DC

Rated Current (In)125 A

Rated Short-Circuit Capacity(230 / 400 V AC) 15 kA

Frequency (f)50/60 Hz

Rated Frequency (f)50/60 Hz

Power LossTotal 9.4 W, at Rated Operating Conditions per Pole 9.4 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20

Pollution Degree3

Width in Number of Modular Spacings1.5

Built-In Depth (t2)82.5 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting PositionAny

StandardsIEC/EN 60947-2, UL 1077

Documents & CAD

Documents 15

CertificateEPD S800 Global market - ABBG-00659-V01.02-ENPDF·19.5 MB·English

CertificateEPD S800 EU market - ABBG-00658-V01.02-ENPDF·20.0 MB·English

CertificateIHM confirmation S800 and S800 accessoriesPDF·587 KB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800P,Made in SwitzerlandPDF·2.9 MB·English

CertificateUL 1077 approval - S800PPDF·286 KB·English

CertificateRINA approval - S800PPDF·1.0 MB·English

CertificateKC approval - S800PPDF·976 KB·English

CertificateLR Approval - S800PPDF·763 KB·English

CertificateCCC approval - S800PPDF·232 KB·English

CertificateS800P VDE Marks ApprovalPDF·325 KB·English

CertificateS800P ESTI CertificatePDF·610 KB·English

CertificateCEBEC Certificate S800PPDF·4.6 MB·English

CertificateCB Test Certificate S800PPDF·690 KB·English

Instruction ManualS800P Instruction ManualPDF·2.9 MB·English

Instruction ManualInstruction Manual S800 rangePDF·3.2 MB·English

CAD Files 4

2D Drawing
