How can I get a price quote for ABB 2CCG001253R0001?

You can request a fast quote for ABB 2CCG001253R0001 from Yılsa Engineering. Reference part number YLSWECAWU1EQCHN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CCG001253R0001 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CCG001253R0001 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CCG001253R0001?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

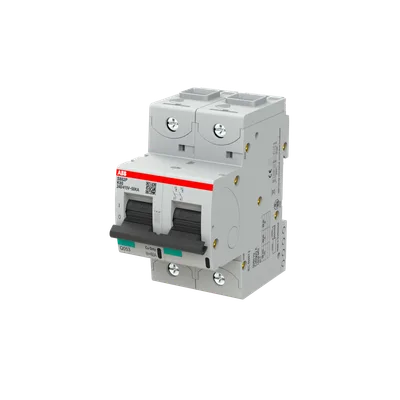

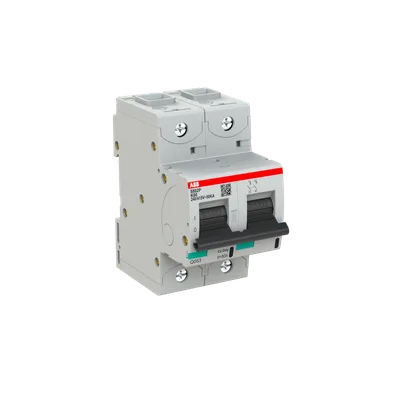

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCG001253R0001

S802P-K80 High Performance Circuit Breaker. K Characteristic. 50kA, 80A, 2P

ABBMFR # 2CCG001253R0001SKU # YLSWECAWU1EQCHN

Extended Product TypeS802P-K80

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Tightening Torque3.5 N·m

Have questions?Chat on WhatsApp

About This Product

S802P-K80 High Performance Circuit Breaker. K Characteristic. 50kA, 80A, 2P

ABB 2CCG001253R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS802P-K80

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 50 kA, (440 V AC) 30 kA, (500 V AC) 15 kA, (690 V AC) 6 kA, (250 V DC) 30 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(240 / 415 V AC) 40 kA

Contact Position IndicationON / OFF / TRIP

Energy Limiting Class3

Number of Protected Poles2

Number of Poles2P

Tightening Torque3.5 N·m

Release TypeK

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 1...50 mm², Rigid 1...70 mm²

Wire Stripping Length19 mm

Rated Operational Voltageacc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 690 V AC

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V

Rated Impulse Withstand Voltage (Uimp)6 kV

Input Voltage TypeAC/DC

Rated Current (In)80 A

Rated Short-Circuit Capacity(400 V AC) 25 kA

Frequency (f)50/60 Hz

Rated Frequency (f)50/60 Hz

Power LossTotal 12.8 W, at Rated Operating Conditions per Pole 6.4 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -40 ... 70 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperature40 °C

Degree of ProtectionIP20

Pollution Degree3

Width in Number of Modular Spacings3

Built-In Depth (t2)82.5 mm

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting PositionAny

StandardsIEC/EN 60947-2, UL 1077

Documents & CAD

Documents 15

CertificateEPD S800 Global market - ABBG-00659-V01.02-ENPDF·19.5 MB·English

CertificateEPD S800 EU market - ABBG-00658-V01.02-ENPDF·20.0 MB·English

CertificateIHM confirmation S800 and S800 accessoriesPDF·587 KB·English

CertificateCCC Certificate,Moulded Case Circuit-breaker,S800P,Made in SwitzerlandPDF·2.9 MB·English

CertificateUL 1077 approval - S800PPDF·286 KB·English

CertificateRINA approval - S800PPDF·1.0 MB·English

CertificateKC approval - S800PPDF·976 KB·English

CertificateLR Approval - S800PPDF·763 KB·English

CertificateCCC approval - S800PPDF·232 KB·English

CertificateS800P VDE Marks ApprovalPDF·325 KB·English

CertificateS800P ESTI CertificatePDF·610 KB·English

CertificateCEBEC Certificate S800PPDF·4.6 MB·English

CertificateCB Test Certificate S800PPDF·690 KB·English

Instruction ManualS800P Instruction ManualPDF·2.9 MB·English

Instruction ManualInstruction Manual S800 rangePDF·3.2 MB·English

CAD Files 5

3D Model

STEP.step · 254 KB

2D Drawing
