ABB 2CCG000531R0001

Click to zoom

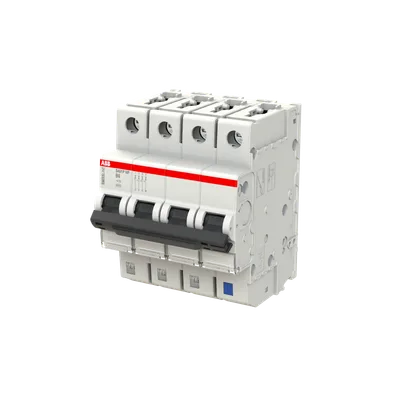

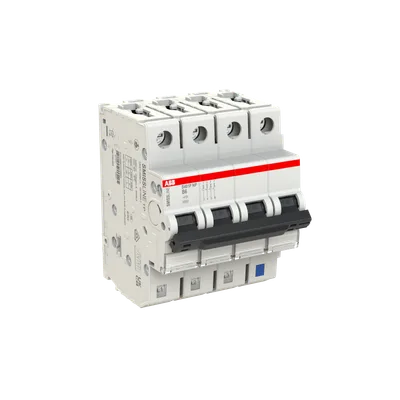

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CCG000531R0001

SMISSLINE TP S400P are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 40 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400P are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.

ABBMFR # 2CCG000531R0001SKU # YLS1KJ26BSKOBVI

Extended Product TypeS403P-B6NP

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance10000 cycle

Share

Have questions?Chat on WhatsApp

About This Product

SMISSLINE TP S400P are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 40 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400P are comply with IEC/EN 60947-2. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.

ABB 2CCG000531R0001

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS403P-B6NP

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 18.12 %, Recycled Cardboard - 67.66 %, Chemically Recycled Polymer - 0 %

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 40 kA, (400 V) 40 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(240 V AC) 20 kA, (415 V AC) 20 kA, (480Y / 277 V AC) 10 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)50 %

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance10000 cycle

Number of Protected Poles4

Number of Poles4P

Tightening Torque2.8 N·m

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableYes

Connecting CapacityFlexible 0.75 … 25 mm², Rigid 0.75 … 35 mm²

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Conditional Short-Circuit Current (Inc)(230 V) 40 kA, (400 V) 40 kA

Rated Frequency (f)50 ... 60 Hz

Power LossTotal 6.4 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -25 … 60 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20

Pollution Degree3

Resistance to Vibrations1 mm 2 … 13.2 Hz

Width in Number of Modular Spacings4

Built-In Depth (t2)91 mm

Mounting PositionAny

Documents & CAD

Documents 12

CertificateS400 SMISSLINE TP End of Life InstructionPDF·334 KB·English

CertificateProduct Environmental Profile SMISSLINE MCB S400M_E_P B,C,D, KPDF·835 KB·English

CertificateESTI Declaration Approval - S400MPDF·1.1 MB·English

CertificateESTI Declaration Approval - S400EPDF·830 KB·English

CertificateCB Test Certificate - S400UCPDF·107 KB·English

CertificateCB Test Certificate - S400MPDF·97 KB·English

CertificateVDE Declaration Approval - S400UCPDF·332 KB·English

CertificateSMISSLINE TP S400P CCCPDF·2.4 MB·English

CertificateSMISSLINE TP S400P DNV/GLPDF·185 KB·English

CertificateSMISSLINE TP S400P VDEPDF·797 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

Instruction ManualSMISSLINE TP Mounting instruction S400PDF·475 KB·English

CAD Files 2

3D Model

STEP.step · 1.4 MB

2D Drawing

AutoCAD DXF.dxf · 1.9 MB
